Запчасти Case CASE (8-26) - HYDROSTATIC DRIVE MOTOR (08) - HYDRAULICS

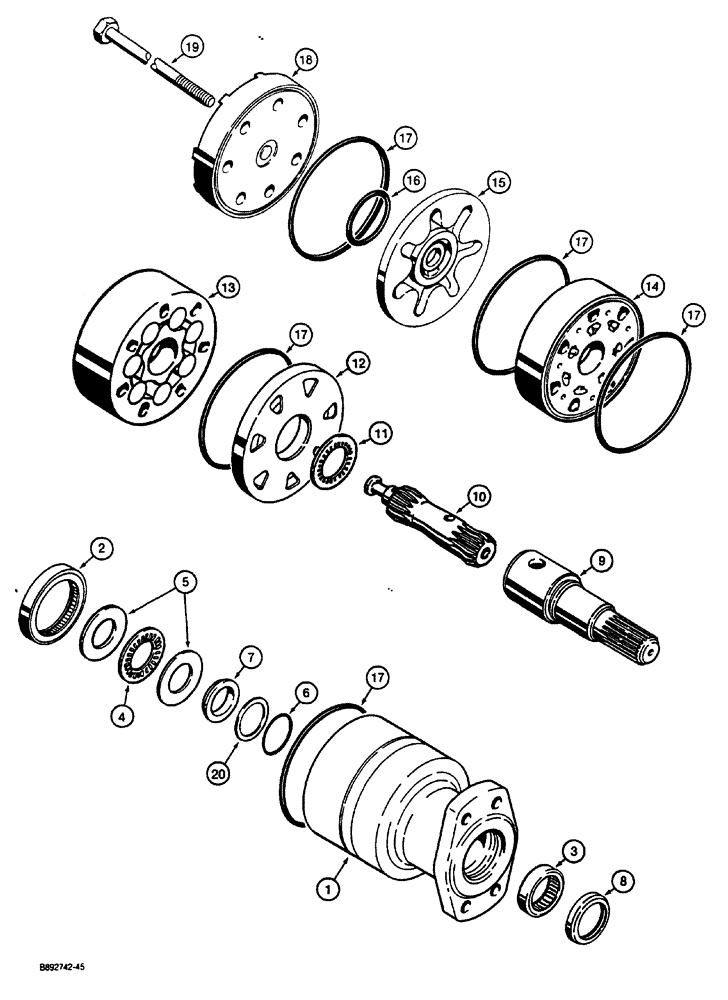

H673156

MOTOR, HYDRAULIC

ASSEMBLY hydrostatic drive, Includes: Ref. 1 - 20

2шт.

H673214

HOUSING

ASSEMBLY motor, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING motor

1шт.

2

N14361

BEARING, NEEDLE,Needle, 54mm ID x 63.49mm OD x 12.7mm W

large

1шт.

3

N14360

BEARING, NEEDLE,Needle, 35.61mm ID x 57.15mm OD x 17.91mm W

small

1шт.

4

N14359

BEARING, THRUST,1.51" ID x 2.295" OD x 0.1562"

shaft

1шт.

5

N14358

BEARING WASHER,1.512" ID x 2.295" OD x 0.095"

bearing

2шт.

6

N14362

RING

backup, seal, housing

1шт.

7

N14363

SEAL,34.72mm ID x 42.42mm OD x 6.48mm Thk

housing

1шт.

8

N14357

SEAL,35.57mm ID x 57.3mm OD x 6.5mm Thk

shaft, outer

1шт.

9

N14443

SHAFT

coupling

1шт.

10

N14444

LINK

drive

1шт.

11

N14346

BEARING, THRUST,1.408" ID x 2.488" OD x 0.0945"

link

1шт.

12

N14445

PLATE

wear

1шт.

13

N14446

ROTOR

drive motor

1шт.

14

N14447

MANIFOLD

plate

1шт.

15

N14350

COMMUTATOR

includes center ring

1шт.

16

N6709

RING,39.47mm ID x 42.67mm OD x 1.65mm Thk

seal, small

1шт.

17

N14354

RING

seal, large

5шт.

18

N14449

COVER

end

1шт.

19

N14448

BOLT

special

7шт.

20

H435695

WASHER

flat, 1-13/32" x 1-21/32" x 1/64"

1шт.
