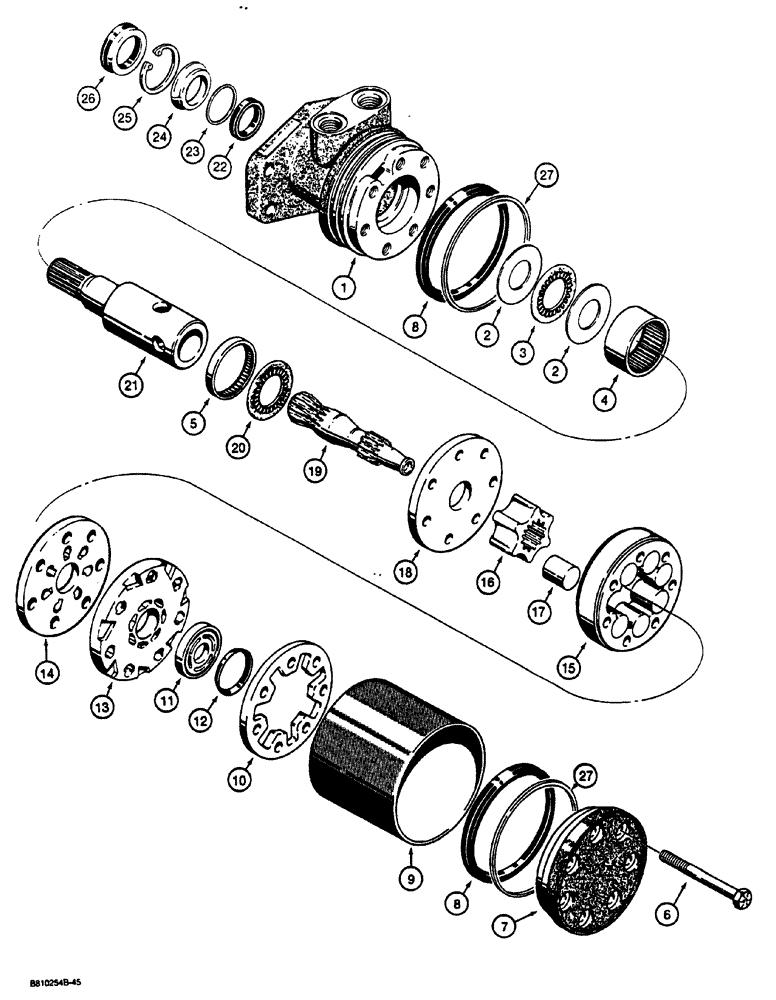

Запчасти Case CASE (8-24) - HYDRA-BORER MOTOR (08) - HYDRAULICS

D120048

MOTOR, HYDRAULIC

ASSEMBLY, Hydra-Borer drive, no longer available, order H673156 motor assembly, parts list Figure 8-26, Includes: Ref. 1 - 27

2шт.

D59696

COVER

HOUSING ASSEMBLY motor, inlet and outlet, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING motor, inlet and outlet

1шт.

2

D60861

WASHER

thrust, housing

2шт.

3

D60860

THRUST BEARING,1.366" ID x 2.24" OD x 0.125"

thrust, housing

1шт.

4

D60862

NEEDLE BEARING

needle, long

1шт.

5

A32424

NEEDLE BEARING,1.875" ID x 2.2505" OD x 1"

needle, short

1шт.

6

28-662

BOLT,Hex, 3/8" - 24 x 3-7/8", Gr 8

hex head, 3/8"-24 NF x 3-7/8", grade 8

7шт.

7

N9527

COVER

end

1шт.

8

N9509

SEALING RING

sleeve

2шт.

Part of Seal Kit P/N N6972

1шт.

9

N9507

SLEEVE

motor

1шт.

D60857

COMMUTATOR

ASSEMBLY motor, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

RING commutator

1шт.

11

NSS

NOT SOLD SEPARAT

COMMUTATOR motor

1шт.

12

N6709

RING,39.47mm ID x 42.67mm OD x 1.65mm Thk

SEAL commutator

1шт.

Part of Seal Kit P/N N6972

1шт.

13

D71235

MANIFOLD

motor

1шт.

14

N6707

PLATE

manifold, Replaces: D71234

1шт.

N9508

ROTOR

GEROTOR ASSEMBLY motor, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

STATOR motor

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR motor

1шт.

17

NSS

NOT SOLD SEPARAT

ROLLER motor

7шт.

18

N9504

PLATE ASSY.

wear, motor

1шт.

19

D72853

SHAFT

drive, link

1шт.

20

D59698

THRUST BEARING,1.25" ID x 2.247" OD x 0.1094"

thrust, drive shaft

1шт.

21

D59697

SHAFT

coupling

1шт.

22

N9703

SEAL

oil, inner

1шт.

Part of Seal Kit P/N N6972

1шт.

23

N9516

SHIM

WASHER special, seal

1шт.

Part of Seal Kit P/N N6972

1шт.

24

N6702

RING

backup, oil seal

1шт.

Part of Seal Kit P/N N6972

1шт.

25

N9702

RING, SNAP

RING SNAP internal

1шт.

Part of Seal Kit P/N N6972

1шт.

26

N9544

SEAL

dirt, outer

1шт.

27

N8747

RING

backup, teflon, seal

2шт.

Part of Seal Kit P/N N6972

1шт.

N6972

SEAL KIT

KIT, Includes: Ref. 8, 12, 22, 23, 24, 25 and 27; N6972 Seal Kit Used to Contain Seals for a 1-1/4" and a 1-1/2" Motor Shaft; Now it Only Contains the Seals for 1-1/2"; Must Order Seal Kit 174397C2 for the 1-1/4" Shaft

1шт.
