(8-22) - HYDRA-BORER HYDRAULIC CIRCUIT

Запчасти Case CASE (8-22) - HYDRA-BORER HYDRAULIC CIRCUIT (08) - HYDRAULICS

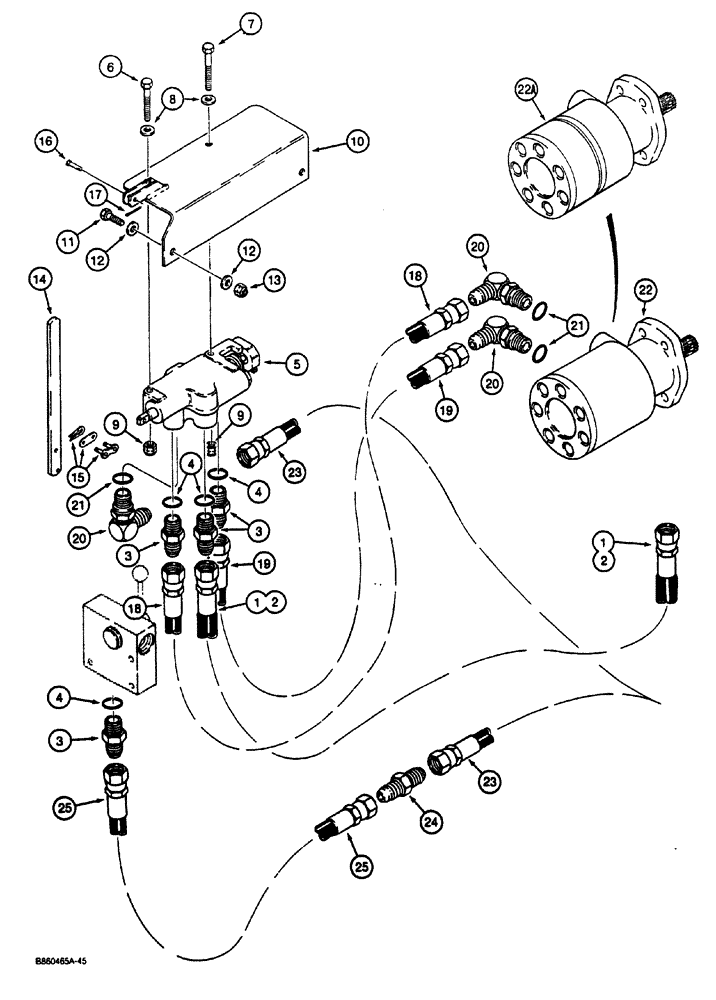

Схема запчастей Case CASE - (8-22) - HYDRA-BORER HYDRAULIC CIRCUIT (08) - HYDRAULICS
24
12
21
4
3
3
25
4
10
18
21
8
9
16
11
22
2
5
4
1
12
20
19
25
6
23
19
22a
17
13
2
23
15
20
18
7
1
20
9
3
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L78468

HOSE ASSY.

to Hydra-Borer control valve in port from plow pump, 37" (940 mm) long, used on models without trencher, if used

1шт.

2

H432542

TUBE

HOSE to Hydra-Borer control valve in port from trencher control valve, 15-3/4" (400 mm) long, used on models with trencher, if used

1шт.

3

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, Includes: Ref. 4

4шт.

4

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

1шт.

5

H544718

LOCK VALVE

ASSEMBLY control, Hydra-Borer, parts list Figure 8-20

1шт.

6

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

7

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

8

195-521

WASHER,5/16", SAE

2шт.

9

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Hex

2шт.

10

H664730

SUPPORT

mounting, control valve

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

12

195525

WASHER

flat, plated, 3/8"

4шт.

13

230-4216

LOCK NUT,3/8"-16, GA

2шт.

14

H377325

LEVER

control, valve, Hydra-Borer

1шт.

15

B12505

LINK

connector, complete, control, Serial Range: lever-bracket

1шт.

16

H35279

AXLE PIN,4.72mm OD x 23.76mm L

clevis, special, 3/16" x 57/64" long

1шт.

17

132-328

COTTER PIN,1/16" x 1/2"

1шт.

18

R22412

HOSE

control valve A port to motor, 49" (1259 mm) long

1шт.

19

D20358

HOSE

control valve B port to motor, 46" (1168 mm) long

1шт.

20

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj., Incl. Ref. 21

3шт.

21

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

22

D120048

MOTOR, HYDRAULIC

ASSEMBLY, Hydra-Borer, parts list Figure 8-24, mounting on Figure 9-24, no longer available, order Ref. 22A motor assembly for service

1шт.

22a

H673156

MOTOR, HYDRAULIC

ASSEMBLY, Hydra-Borer, part list Figure 8-26, mounting on Figure 9-24

1шт.

23

H432542

TUBE

HOSE, Hydra-borer control valve out port, 15-3/4" (400 mm) long

1шт.

24

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR straight

1шт.

25

H431809

HYDRAULIC HOSE,15.88 mm ID x 1600.00 mm, SAE 100R2A

To plow control valve

1шт.
