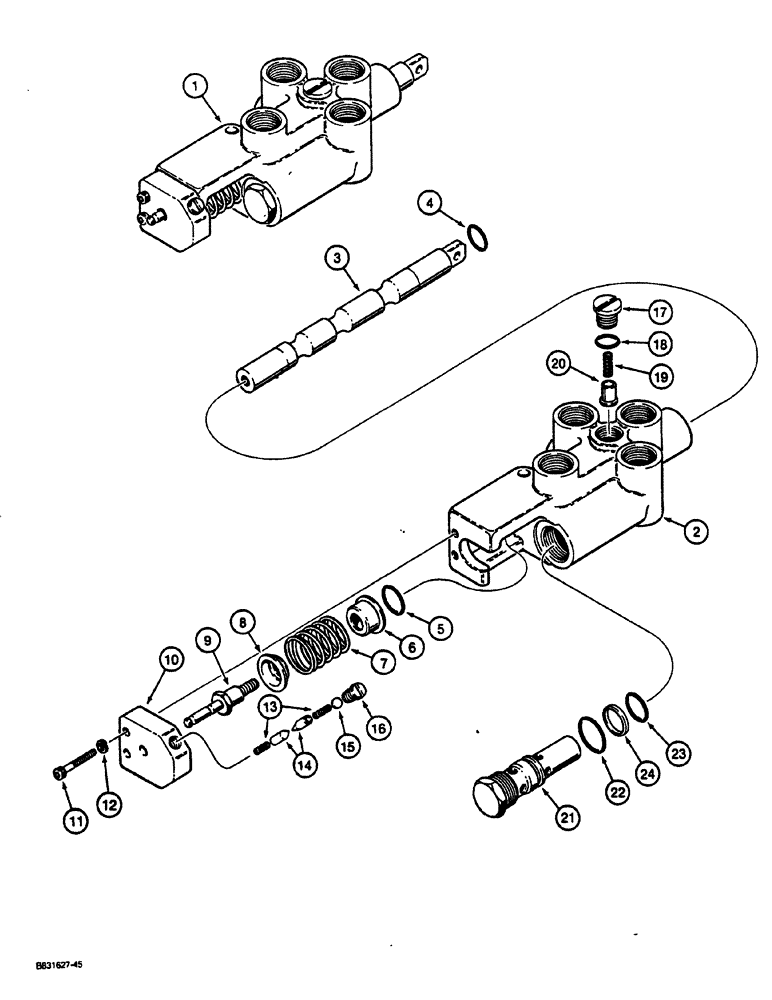

Запчасти Case CASE (8-20) - ATTACHMENT CONTROL VALVE (08) - HYDRAULICS

1

H544718

LOCK VALVE

ASSEMBLY control, attachment, one spool, Cessna No. 30501-AR, one each used for trencher and Hydra-Borer options, Includes: Ref. 2 - 24

1-2шт.

2

NSS

NOT SOLD SEPARAT

HOUSING control valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL control valve

1шт.

4

F37887

O-RING

spool, eye end

1шт.

Part of Seal Kit P/N H125864

1шт.

5

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

spool, plug end

1шт.

Part of Seal Kit P/N H125864

1шт.

6

H138271

WASHER

SEAT spring, inner

1шт.

7

H52928

VALVE SPRING

centering, spool

1шт.

8

F59116

WASHER

SEAT spring, outer

1шт.

9

H152157

SCREW

spool end, detent

1шт.

10

H125831

BLOCK

HOUSING detent

1шт.

11

173-239

SCREW

hex socket head, 1/4"-20 NC x 1"

2шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

13

H105049

SPRING

detent

2шт.

14

H104992

PAWL

PLUNGER detent

2шт.

15

H141788

DISC

SHIM detent

1шт.

16

H105015

PLUG

detent retaining

1шт.

H47506

PLUG

ASSEMBLY load check, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG load check

1шт.

18

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

plug

1шт.

Part of Seal Kit P/N H125864

1шт.

19

FH730374

SPRING

load check

1шт.

20

FH730366

PLUNGER

load check

1шт.

N8813

LOCK VALVE

ASSEMBLY relief, control valve, Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

VALVE relief, control valve

1шт.

22

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

outer, large

1шт.

Part of Seal Kit P/N H125864

1шт.

23

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

inner, small

1шт.

Part of Seal Kit P/N H125864

1шт.

24

G32626

RING

backup, inner O-ring

1шт.

Part of Seal Kit P/N H125864

1шт.

H125864

KIT

seal, Includes: Ref. 4, 5, 18, 22, 23 and 24

1шт.
