(8-18) - ATTACHMENT LIFT SELECTOR VALVE

Запчасти Case CASE (8-18) - ATTACHMENT LIFT SELECTOR VALVE (08) - HYDRAULICS

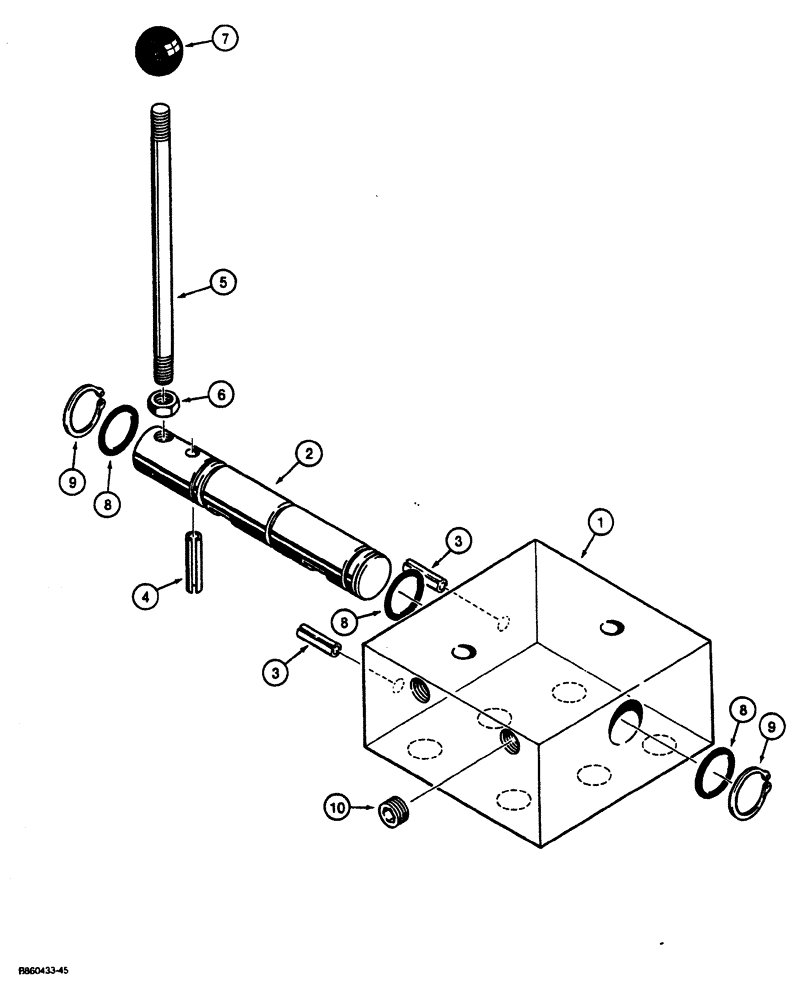

Схема запчастей Case CASE - (8-18) - ATTACHMENT LIFT SELECTOR VALVE (08) - HYDRAULICS
9
6
2
4
1
9
3
10
8
7
3
5
8
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H672689

VALVE

ASSEMBLY selector, attachment lift, Replaces: H616763, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

3

138-134

LOCK PIN,1/4" x 1", Slotted

2шт.

4

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

1шт.

5

NSS

NOT SOLD SEPARAT

HANDLE valve

1шт.

6

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

7

H249839

KNOB

handle

1шт.

8

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

spool

3шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , spool #87, Ext

2шт.

10

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

4шт.
