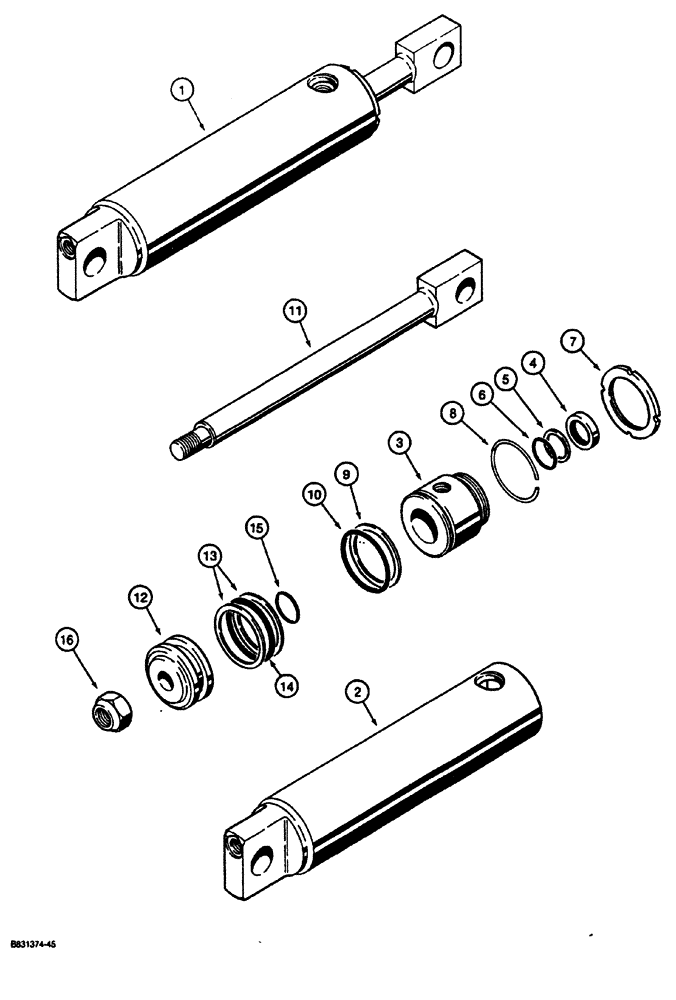

Запчасти Case CASE (8-16) - TRENCHER BOOM LIFT CYLINDER (08) - HYDRAULICS

1

H504076

CYLINDER BLOCK

ASSEMBLY trencher boom lift, 2-1/2" (64 mm) ID x 8" (203 mm) stroke, Cessna No. 41046-ED, Includes: Ref. 2 - 16

1шт.

2

H72215

SLEEVE CYLINDER

TUBE

1шт.

3

H70078

BEARING

GLAND cylinder

1шт.

4

H220475

WIPER SEAL

rod

1шт.

Part of Seal Kit P/N H507350

1шт.

5

A35899

RING

backup, small O-ring, gland inner, piston rod

1шт.

Part of Seal Kit P/N H507350

1шт.

6

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

small, gland inner, piston rod

1шт.

Part of Seal Kit P/N H507350

1шт.

7

H745786

BEARING LOCK NUT

lock, gland

1шт.

8

A35898

RING, SNAP

RING SNAP retaining, gland

1шт.

Part of Seal Kit P/N H507350

1шт.

9

A35901

RING

backup, gland O-ring, outer

1шт.

Part of Seal Kit P/N H507350

1шт.

10

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

gland, outer

1шт.

Part of Seal Kit P/N H507350

1шт.

11

H66571

ROD

piston, 1" (25 mm) diameter

1шт.

12

A35897

PISTON ASSY.

cylinder

1шт.

13

A35810

RING

backup, piston seal, outer

2шт.

Part of Seal Kit P/N H507350

1шт.

14

A30971

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

SEAL piston, outer

1шт.

Part of Seal Kit P/N H507350

1шт.

15

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

piston, inner

1шт.

Part of Seal Kit P/N H507350

1шт.

16

131-1251

LOCK NUT,3/4"-16, GC

1шт.

H507350

GASKET KIT

seal, Includes: Ref. 4, 5, 6, 8, 9, 10, 13, 14 and 15

1шт.
