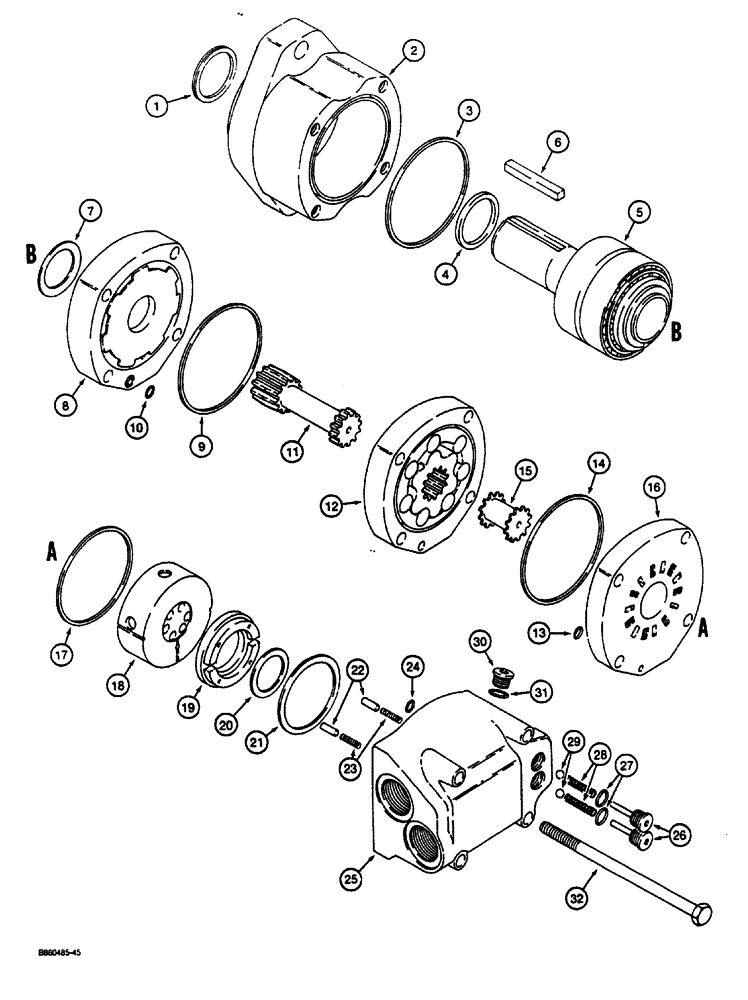

Запчасти Case CASE (8-14) - TRENCHER DRIVE MOTOR (08) - HYDRAULICS

H660373

MOTOR, HYDRAULIC

ASSEMBLY trencher drive, Char-Lynn No. 104-1022, Includes: Ref. 1 - 32

1шт.

1

N9535

SEAL

dust

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING bearing

1шт.

3

S114357

SEAL,Square, 1.7mm Thk x 75.9mm ID

SEAL bearing housing

1шт.

4

N9536

SEAL

shaft

1шт.

5

N9530

SHAFT ASSY.

BEARING motor, components not serviced separately

1шт.

6

N9531

KEY

shaft

1шт.

7

S114491

SEAL,30.9mm ID x 38.7mm OD x 3.9mm Thk

shaft to wear plate

1шт.

8

S114492

PLATE

wear, motor

1шт.

9

S114357

SEAL,Square, 1.7mm Thk x 75.9mm ID

SEAL wear plate

1шт.

10

L30893

O-RING,1/16" Thk x 5/16" ID

wear plate

1шт.

11

N9537

DRIVE

SHAFT motor

1шт.

12

N9538

GEROTOR

ASSEMBLY motor, components not serviced separately, order complete assembly for service

1шт.

13

L30893

O-RING,1/16" Thk x 5/16" ID

valve plate

1шт.

14

S114357

SEAL,Square, 1.7mm Thk x 75.9mm ID

SEAL valve plate

2шт.

15

S114496

COUPLING

DRIVE valve

1шт.

16

S114358

PLATE

valve

1шт.

17

S120618

SEAL

housing

1шт.

18

S114362

VALVE

motor

1шт.

19

N9532

PLATE

balance

1шт.

20

N9533

SEAL

balance plate, inner

1шт.

21

N9534

SEAL

balance plate, outer

1шт.

22

S114372

PIN

valve housing

2шт.

23

S114366

SPRING

pin

2шт.

24

L30893

O-RING,1/16" Thk x 5/16" ID

valve housing

1шт.

S236486

HOUSING

ASSEMBLY port end, Includes: Ref. 25 - 31

1шт.

25

NSS

NOT SOLD SEPARAT

HOUSING port end

1шт.

S236487

PLUG

ASSEMBLY check valve, Includes: Ref. 26 and 27

2шт.

26

NSS

NOT SOLD SEPARAT

PLUG check valve

1шт.

27

S114499

O-RING

plug

1шт.

28

D74394

SPRING

check valve

2шт.

29

211-7

BALL,1/4" Dia

Chrome alloy steel, grade 200

2шт.

30

278548

PLUG,Hex, 7/16"-20 ORB

Case drain, Incl Ref 31

1шт.

31

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Plug

1шт.

32

114-262

BOLT,Hex, 3/8" - 24 x 4-3/4", Gr 5

4шт.
