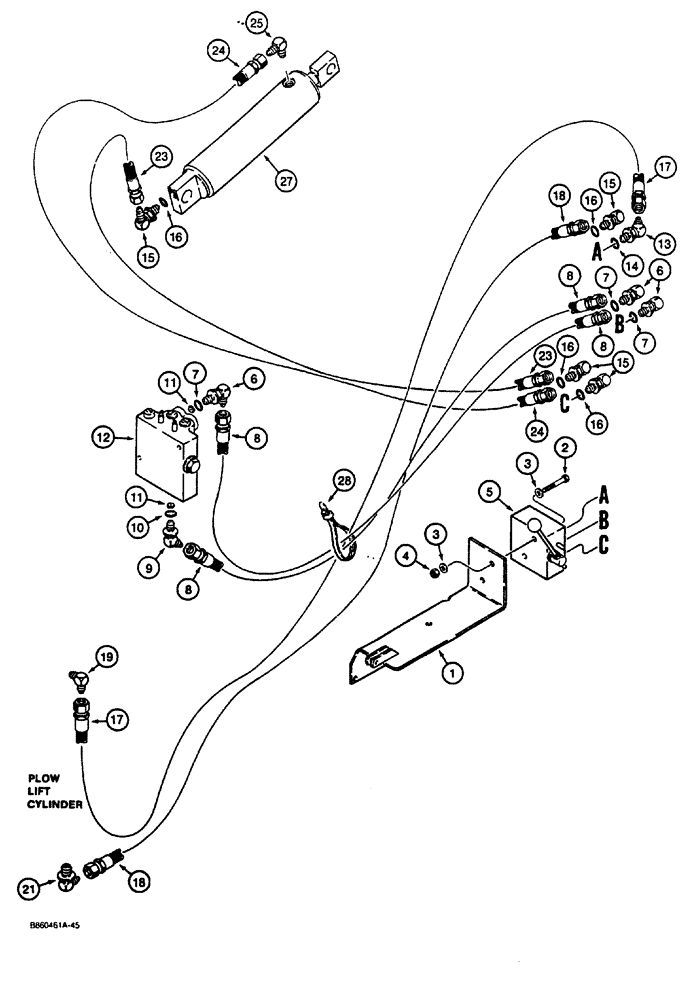

Запчасти Case CASE (8-12) - SELECTOR VALVE AND ATTACHMENT LIFT HYDRAULIC CIRCUITS, PLOW AND TRENCHER (08) - HYDRAULICS

1

H664722

SUPPORT

BRACKET selector valve mounting, see Figure 8-10 for bracket mounting hardware

1шт.

2

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

3

195-525

WASHER,3/8", SAE

4шт.

4

230-4216

LOCK NUT,3/8"-16, GA

2шт.

5

H672689

VALVE

ASSEMBLY selector, plow or trencher lift, parts list Figure 8-18, Replaces: H616763

1шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Adjustable, Includes Ref. 7

3шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Elbow

1шт.

8

H169151

HYDRAULIC HOSE,6.35 mm ID x 609.60 mm, SAE 100R1

From Plow Lift Ports on Steering Control Valve

2шт.

9

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Adj., Incl. Ref. 10

1шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Elbow

1шт.

11

H757815

PORT

RESTRICTOR lift, steering control valve

2шт.

12

H656454

VALVE

ASSEMBLY control, steering and attachment lift, parts list Figure 5-16, mounting parts on Figure 5-12

1шт.

13

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Adj., Incl. Ref. 14

1шт.

14

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Elbow

1шт.

15

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Adjustable, Includes Ref. 16

4шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Elbow

1шт.

17

H165282

HYDRAULIC HOSE,6.35 mm ID x 533.40 mm, SAE 100R1

Upper Right-Hand Port of Selector Valve to Rod End of Plow Lift Cylinder

1шт.

18

H171264

HYDRAULIC HOSE,6.35 mm ID x 457.20 mm, SAE 100R1

Upper Left-Hand Port of Selector Valve to Closed End of Plow Lift Cylinder

1шт.

19

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

90°

1шт.

21

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 22

1шт.

22

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Elbow

1шт.

23

H433466

HOSE

lower left-hand port, 80-11/16" (2050 mm) long

1шт.

24

H433468

HOSE

lower right-hand port of selector valve to rod end of trencher lift cylinder, 88-5/8" (2250 mm) long

1шт.

25

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

90 degree

1шт.

27

H504076

CYLINDER BLOCK

ASSEMBLY trencher boom lift, parts list Figure 8-16, mounting parts on Figure 9-14

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, hoses

1шт.
