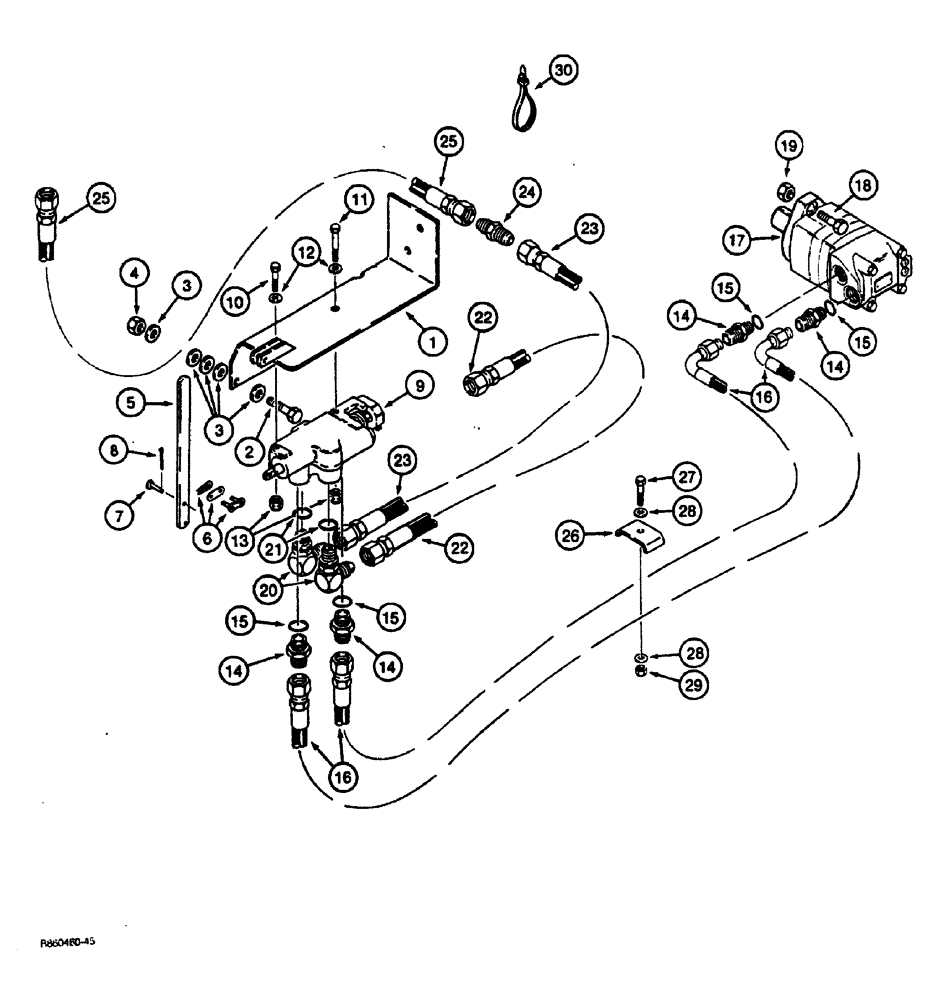

Запчасти Case CASE (8-10) - TRENCHER CONTROL VALVE MOUNTING AND DRIVE CIRCUIT (08) - HYDRAULICS

1

H664722

SUPPORT

BRACKET mounting, trencher control valve and selector valve

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3

195-525

WASHER,3/8", SAE

10шт.

4

230-4216

LOCK NUT,3/8"-16, GA

2шт.

5

H377325

LEVER

control, trencher control valve

1шт.

6

B12505

LINK

connector, complete, control, Serial Range: lever-bracket

1шт.

7

H35279

AXLE PIN,4.72mm OD x 23.76mm L

clevis, special, 3/16" x 57/64" long

1шт.

8

132-328

COTTER PIN,1/16" x 1/2"

1шт.

9

H544718

LOCK VALVE

ASSEMBLY control, trencher, parts list Figure 8-20

1шт.

10

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

11

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

12

195-521

WASHER,5/16", SAE

2шт.

13

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Hex

2шт.

14

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, Includes: Ref. 15

4шт.

15

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

1шт.

16

H432609

HOSE

control valve to chain drive motor

2шт.

17

H660373

MOTOR, HYDRAULIC

ASSEMBLY trencher drive, parts list Figure 8-14

1шт.

18

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

19

131-1182

LOCK NUT,1/2"-13, GA

hex, self-locking, plated, 1/2"-13 NC

2шт.

20

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj., Incl. Ref. 21

2шт.

21

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

22

L78468

HOSE ASSY.

trencher control valve supply from plow double pump, 37" (940 mm) long

1шт.

23

H432542

TUBE

HOSE trencher control valve outlet to plow control valve, 15-3/4" (400 mm) long

1шт.

On models equipped with a Hydra-Borer, Ref. 23 hose connects to the Hydra-Borer control valve inlet hose. See Figure 8-22 for complete Hydra-Borer hydraulic circuit.

1шт.

24

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR straight

1шт.

25

H431809

HYDRAULIC HOSE,15.88 mm ID x 1600.00 mm, SAE 100R2A

To plow control valve

1шт.

26

H46888

CLAMP

trencher drive motor hoses

1шт.

27

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

28

195-521

WASHER,5/16", SAE

2шт.

29

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Hex

1шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, hoses

1шт.
