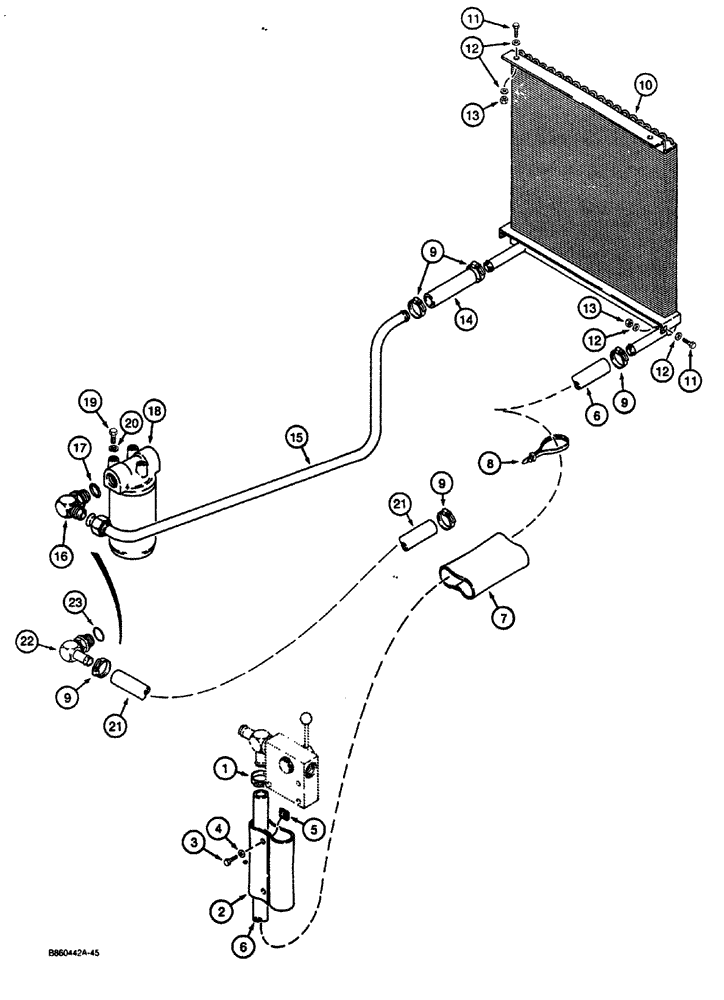

Запчасти Case CASE (8-06) - BASIC HYDRAULIC CIRCUIT, OIL COOLER AND FILTER (08) - HYDRAULICS

1

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

hose

1шт.

2

H374678

FLAP

BOOT hose cover

1шт.

3

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

4

195-521

WASHER,5/16", SAE

2шт.

5

H346650

NUT

U boot, hose cover

2шт.

6

REF

INSTRUCTION

HOSE plow control valve to cooler, 3/4" (19 mm) ID x 84" (2134 mm) long, cut from H381962 bulk hose, see below

1шт.

7

H374678

FLAP

BOOT hose cover

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, hose

1шт.

9

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

hose

5шт.

10

H428060

COOLER

hydraulic oil

1шт.

11

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

12

195-521

WASHER,5/16", SAE

8шт.

13

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Hex

4шт.

14

REF

INSTRUCTION

HOSE cooler to filter , 3/4" (19 mm) ID x 4-1/2" (114 mm) long, cut from D55911 bulk hose, see below, no longer required, order Ref. 21 and 22 for service

1шт.

15

H669226

TUBE ASSY.

SPARE PART cooler to filter, used with Ref. 14 hose only

1шт.

16

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 17

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Elbow

1шт.

18

H649277

FILTER ASSY

hydraulic oil, parts list Figure 8-08

1шт.

19

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

3шт.

21

H317347

HOSE

cooler to filter, 3/4" (19 mm) x 15/32" (12 mm) x 46" (1168 mm), cut from H381962 bulk hose, see below

1шт.

22

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

Used with Ref. 21 hose only, Incl. Ref. 23

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

H381962

HOSE

SPARE PART bulk, 3/4" (19 mm) ID x 118" (2997 mm) long, use to make Ref. 6

1шт.

D55911

HOSE

bulk, 3/4" (19 mm) ID x 28" (711 mm) long, use to make Ref. 14

1шт.
