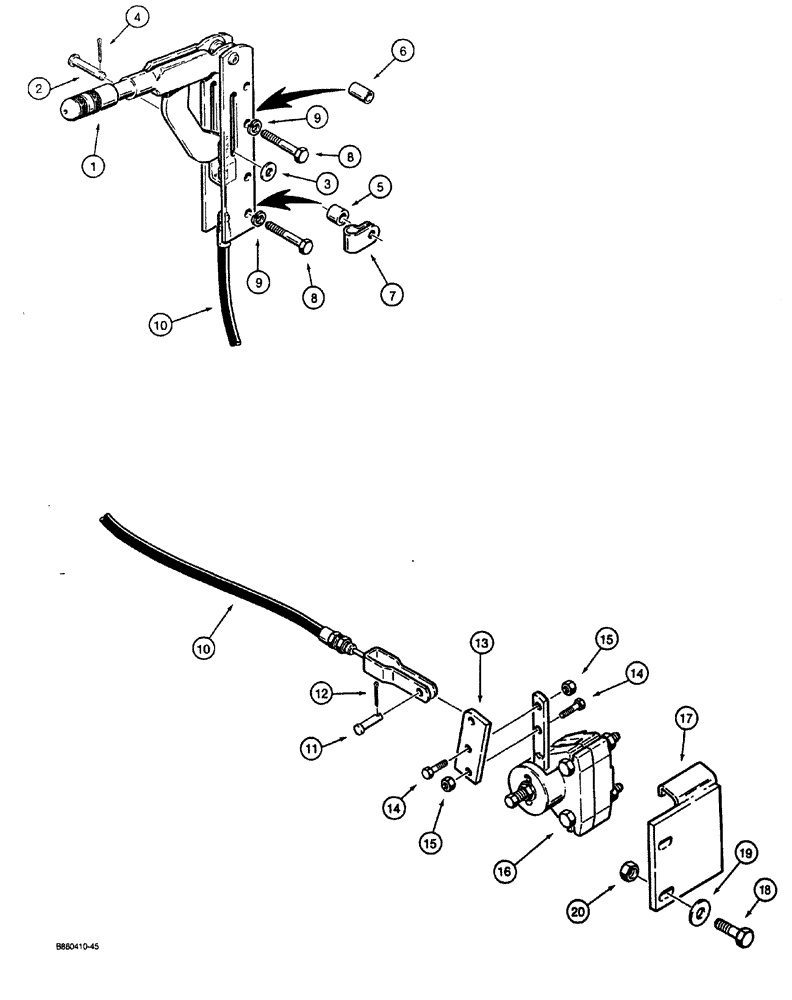

Запчасти Case CASE (7-02) - PARKING BRAKE (07) - BRAKES

H506881

HANDLE

LEVER ASSEMBLY parking brake, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER parking brake

1шт.

2

D42458

PIN

clevis, special

1шт.

3

195-103

WASHER,5/16"

1шт.

4

132-320

COTTER PIN,3/32" x 3/4"

1шт.

5

H53959

SPACER

brake lever, 1/2" (13 mm) long

1шт.

6

H53942

SPACER

brake lever, 3/4" (20 mm) long

1шт.

7

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

cable

1шт.

8

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

10

H665927

CONTROL BLOCK

CABLE parking brake, Replaces: H671040

1шт.

11

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

PIN special, 1/4" x 51/64" long

1шт.

12

132-328

COTTER PIN,1/16" x 1/2"

1шт.

13

H381582

LEVER

disc brake actuating

1шт.

14

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

15

131-1180

LOCK NUT,1/4"-20, GA

2шт.

16

H638858

CALIPER

ASSEMBLY parking brake, parts list Figure 7-04

1шт.

See figure 6-13 for parking brake disc and mounting.

1шт.

17

H639856

BRACKET

brake caliper mounting

1шт.

18

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

19

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, plated, 3/8"

2шт.

20

230-4216

LOCK NUT,3/8"-16, GA

2шт.
