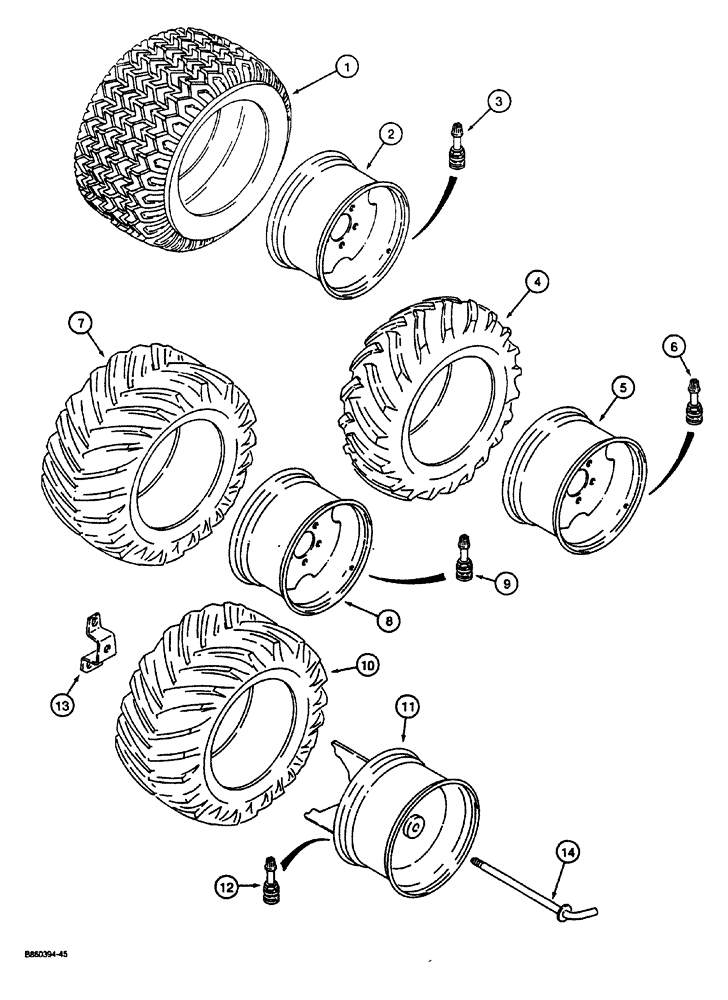

Запчасти Case CASE (6-22) - WHEELS AND TIRES, DUAL WHEEL OPTION (06) - POWER TRAIN

1

REF

INSTRUCTION

TIRE transport, turf and garden, 23 x 8.50 x 12, not a service item, purchase locally

4шт.

2

H554972

WHEEL

rim, 7.00 x 12

4шт.

3

C10442

VALVE

SPARE PART STEM tire inflation

4шт.

4

H164616

TYRE/TIRE

SPARE PART all traction, field and road, 23 x 8.50 x 12, not a service item, purchase locally

4шт.

5

H554972

WHEEL

rim, 7.00 x 12

4шт.

6

C10442

VALVE

SPARE PART STEM tire inflation

4шт.

7

H231944

TYRE/TIRE

all traction, super terra grip, 23 x 10.50 x 12, not a service item, purchase locally

4шт.

8

H554972

WHEEL

rim, 8.50 x 12

4шт.

9

C10442

VALVE

SPARE PART STEM tire inflation

4шт.

10

H231944

TYRE/TIRE

all traction, super terra grip, 23 x 10.50 x 12, not a service item, purchase locally, dual wheel option

4-8шт.

11

H669333

WHEEL

rim, 8.50 x 12, dual wheel option

2-4шт.

12

C10442

VALVE

SPARE PART STEM tire inflation, dual wheel option

4-8шт.

13

H669341

BRACKET

dual wheel option

2-4шт.

14

H669358

BOLT

L type, special, dual wheel option

2-4шт.
