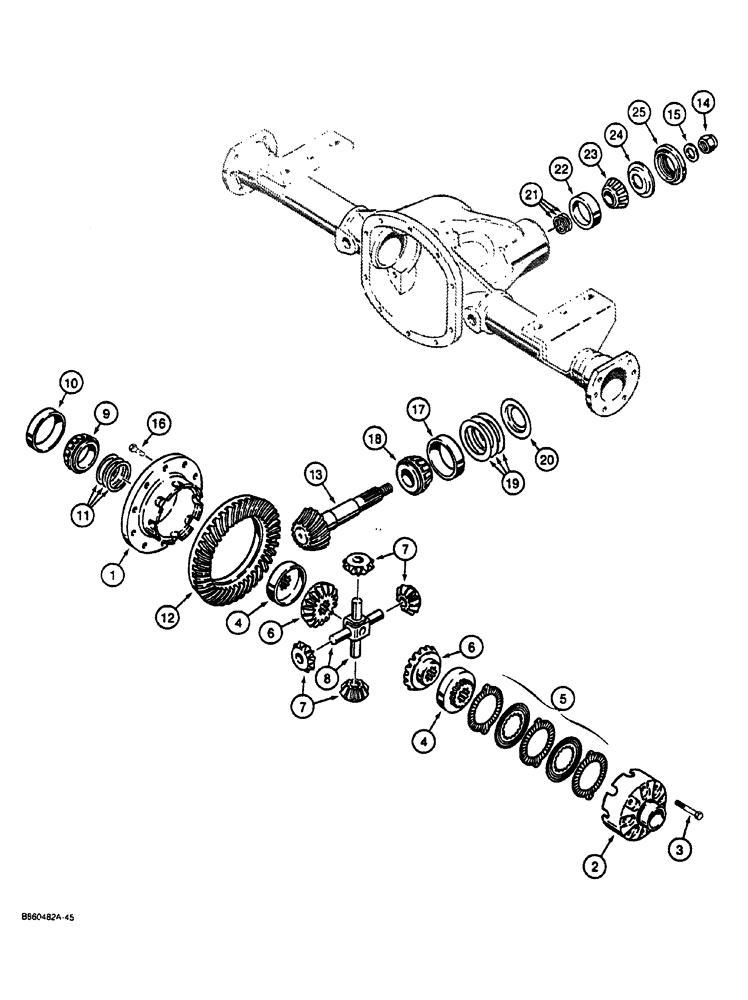

Запчасти Case CASE (6-20) - FRONT AND REAR AXLES, DIFFERENTIAL (06) - POWER TRAIN

H645945

CENTER AXLE

ASSEMBLY front and rear, Dana No. 603910-2, also includes parts listed on Figure 6-18, Includes: Ref. 1 - 25

2шт.

H248443

CASE ASSY.

differential, Includes: Ref. 1 - 3

1шт.

1

H204768

HUB

CASE flange half

1шт.

2

NSS

NOT SOLD SEPARAT

CASE plain half

1шт.

3

H232579

BOLT,Hex, 3/8" - 24 LH Thd x 2.906"

hex head, special

8шт.

4

H204719

RING

side gear

2шт.

5

H206896

CLUTCH DISC

CLUTCH DISK SET plates, differential

1шт.

H197939

GEAR-SET

differential, Includes: Ref. 6 and 7

1шт.

6

H204727

GEAR WHEEL

differential

2шт.

7

H204750

PINION

differential

4шт.

8

H204743

CROSS

SHAFT pinion

2шт.

9

H753616

BEARING CONE

CONE bearing, differential

2шт.

10

H753608

CONE

CUP bearing, differential

2шт.

11

H197947

SHIM,.003" Thk

Case adjustment (0.08 mm)

1шт.

11

H197954

SHIM,.005" Thk

Case adjustment (0.13 mm)

1шт.

11

H197962

SHIM,.010" Thk

Case adjustment (0.25 mm)

1шт.

11

H197970

SHIM,.030" Thk

Case adjustment (0.76 mm)

1шт.

H583492

GEAR-SET

PINION axle, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR ring, differential case

1шт.

13

NSS

NOT SOLD SEPARAT

SHAFT pinion, input

1шт.

14

H197566

NUT

special, yoke retaining

1шт.

15

H197574

WASHER

special, pinion shaft

1шт.

16

H225219

BOLT (SPREADER)

ring gear mounting

10шт.

17

H753525

CUP

pinion shaft bearing, inner

1шт.

18

H753533

BEARING CONE

pinion shaft bearing, inner

1шт.

19

H197871

SHIM,.003" Thk

Pinion shaft, Inner (0.08 mm)

1шт.

19

H197889

SHIM,.005" Thk

Pinion shaft, Inner (0.13 mm)

1шт.

19

H197897

SHIM,.010" Thk

Pinion shaft, Inner (0.25 mm)

1шт.

20

H197616

BAFFLE

pinion bearing

1шт.

21

H197665

SHIM,.003" Thk

Pinion shaft, Outer (0.08 mm)

1шт.

21

H197673

SHIM,.005" Thk

Pinion shaft, Outer (0.13 mm)

1шт.

21

H197681

SHIM,.010" Thk

Pinion shaft, Outer (0.25 mm)

1шт.

21

H197699

SHIM,.030" Thk

Pinion shaft, Outer (0.76 mm)

1шт.

22

D31948

BEARING CUP,2.5312" OD x 0.6563"

pinion shaft bearing, outer

1шт.

23

H753483

BEARING

CONE pinion shaft, outer

1шт.

24

H197764

WASHER

SLINGER oil, pinion shaft

1шт.

25

N8427

OIL SEAL

oil, pinion shaft

1шт.
