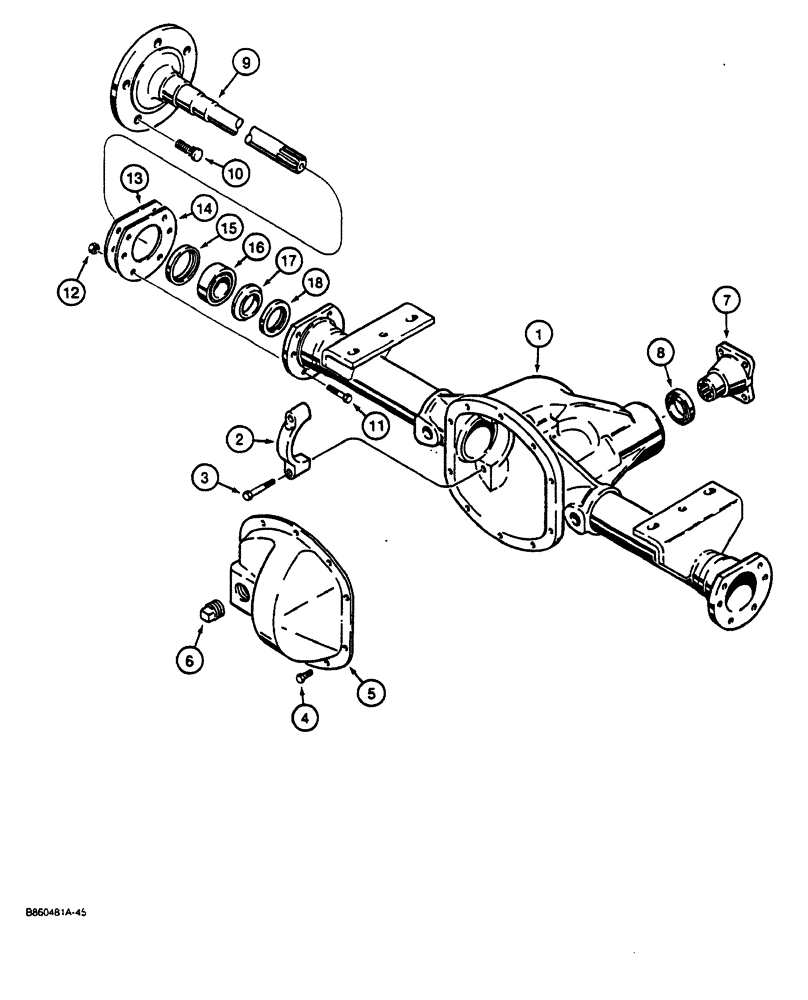

Запчасти Case CASE (6-18) - FRONT AND REAR AXLES, HOUSING, COVER, YOKE, AND SHAFTS (06) - POWER TRAIN

H645945

CENTER AXLE

ASSEMBLY front and rear, Dana No. 603910-2, also includes parts listed on Figure 6-20, Includes: Ref. 1 - 18

2шт.

N13736

HOUSING ASSY.

SPARE PART axle, includes tubes, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING axle

1шт.

2

NSS

NOT SOLD SEPARAT

CAP differential bearing

2шт.

3

H248310

CYLINDER END CAP

BOLT hex head, special

4шт.

4

H226555

FLANGE BOLT

hex head, special, cover

10шт.

N13736

HOUSING ASSY.

SPARE PART COVER axle, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

COVER axle housing

1шт.

6

221-676

PLUG

square head, magnetic, 3/4" NPT

1шт.

NSS

NOT SOLD SEPARAT

YOKE ASSEMBLY axle, Includes: Ref. 7 and 8

1шт.

7

H197582

YOKE

UNIVERSAL JOINT YOKE axle

1шт.

8

H196998

SPACER

SLINGER oil, yoke

1шт.

H610691

CENTER AXLE

SHAFT ASSEMBLY, Includes: Ref. 9 and 10

2шт.

9

NSS

NOT SOLD SEPARAT

SHAFT axle

1шт.

10

H171090

WHEEL BOLT

BOLT wheel

5шт.

11

H197715

BOLT

special, axle retaining

8шт.

12

131-1133

NUT,3/8"-24, GC

hex, self-locking, plated, 3/8"-24 NF

8шт.

13

H303313

RING

RETAINER oil seal

2шт.

14

NSS

NOT SOLD SEPARAT

SPACER wheel bearing

2шт.

15

H757153

OIL SEAL

oil

2шт.

16

H757161

BEARING

wheel

2шт.

17

H303305

RETAINER

oil seal

2шт.

18

H197749

SEAL

oil

2шт.

M20704

ADHESIVE

cover, form-in-place, 28 fluid ounces per tube

1шт.
