(6-16) - DRIVE SHAFT

Запчасти Case CASE (6-16) - DRIVE SHAFT (06) - POWER TRAIN

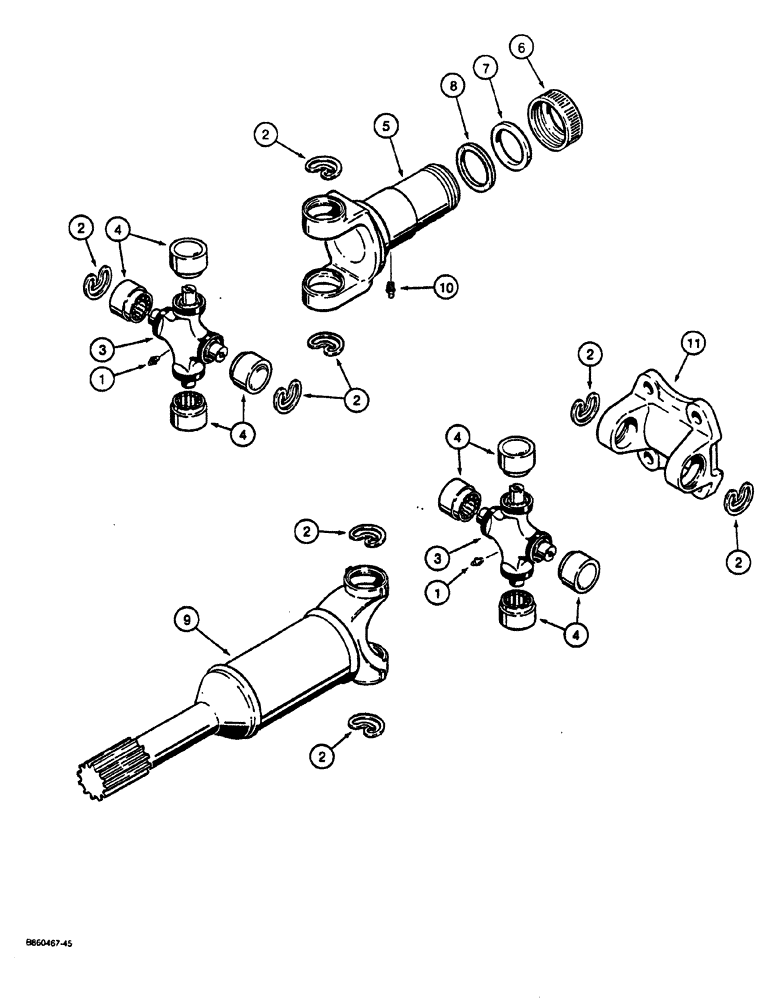

Схема запчастей Case CASE - (6-16) - DRIVE SHAFT (06) - POWER TRAIN
11
1
3
4
4
9
2
3
2
2
2
10
6
1
4
2
2
8
2
5
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H588541

DRIVE SHAFT

ASSEMBLY transmission to axle, Includes: Ref. 1 - 11

1шт.

D70629

U-JOINT SPIDER

KIT, Includes: Ref. 1 - 4

2шт.

1

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, straight, 1/4"-28 NF taper

1шт.

2

11256

SNAP RING

snap, bearing retaining

4шт.

3

NSS

NOT SOLD SEPARAT

JOINT universal, drive shaft

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING universal joint

4шт.

5

H223867

YOKE

UNIVERSAL JOINT YOKE slip, drive shaft

1шт.

6

H223875

CYLINDER END CAP

dust

1шт.

7

H223891

WASHER

special, steel

1шт.

8

H223883

WASHER

special, cork

1шт.

9

H601641

DRIVE SHAFT

TUBE

1шт.

10

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, straight, 1/4"-28 NF taper

1шт.

11

H251777

FLANGE

YOKE

1шт.
