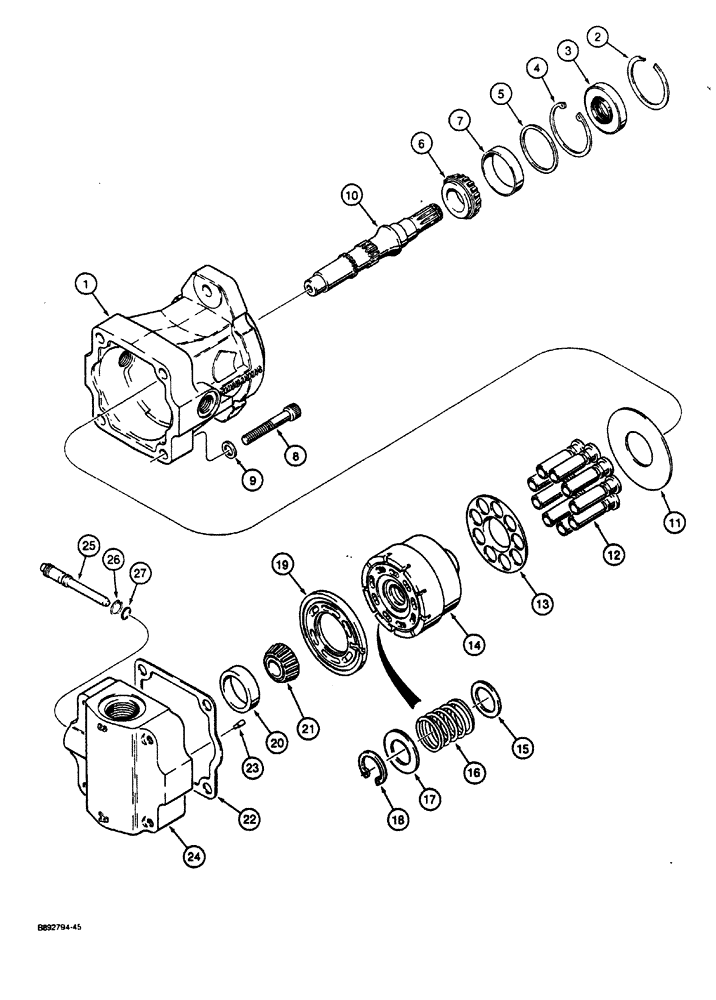

Запчасти Case CASE (6-11A) - GROUND DRIVE MOTOR (06) - POWER TRAIN

H673357

MOTOR

ASSEMBLY ground drive, Sundstrand No. 18-3027, no longer available, order H673357 motor assembly for service, Includes: Ref. 1 - 27

1шт.

1

H436031

HOUSING

output shaft end

1шт.

2

H436032

RING

retaining, seal

1шт.

3

H756296

SEAL

shaft, output

1шт.

4

B13252

RING, SNAP

RING SNAP retaining, bearing, shaft

1шт.

5

H354050

WASHER

special

1шт.

H632505

CUP

KIT bearing, output shaft, outer, Includes: Ref. 6 and 7

1шт.

6

D29266

ROLLER BEARING,1" ID x 0.58"

1шт.

7

D29267

BEARING CUP,1.98" OD x 0.42"

bearing

1шт.

8

61-740

HEX SOC SCREW,7/16"-14 x 2 1/2"

hex socket head, 7/16"-16 NC x 2-1/2"

4шт.

9

195-105

WASHER,7/16"

flat, plated, 7/16"

4шт.

10

H354100

SHAFT

output

1шт.

11

H351379

PLATE, THRUST

1шт.

H673277

BLOCK

KIT cylinder, motor, Includes: Ref. 12 - 18

1шт.

12

NSS

NOT SOLD SEPARAT

PISTON motor

9шт.

13

NSS

NOT SOLD SEPARAT

RETAINER piston

1шт.

14

NSS

NOT SOLD SEPARAT

BLOCK piston cylinder

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER thrust, spring, inner

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING block

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER spring, outer

1шт.

18

NSS

NOT SOLD SEPARAT

RING snap, block

1шт.

19

H351387

LARGE PLATE

PLATE, LARGE valve

1шт.

H632497

KIT

SPARE PART BEARING output shaft, inner, Includes: Ref. 20 and 21

1шт.

20

B12410

BEARING, CUP,1.782" OD

CUP

1шт.

21

B12411

ROLLER BEARING,0.75" ID x 0.655"

1шт.

22

H354076

GASKET

housing

1шт.

23

H351445

PIN

housing alignment

1шт.

24

H435884

CAP

end, motor

1шт.

25

133482C1

VALVE

bypass

1шт.

26

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

backup, bypass valve

1шт.

27

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

O bypass valve

1шт.
