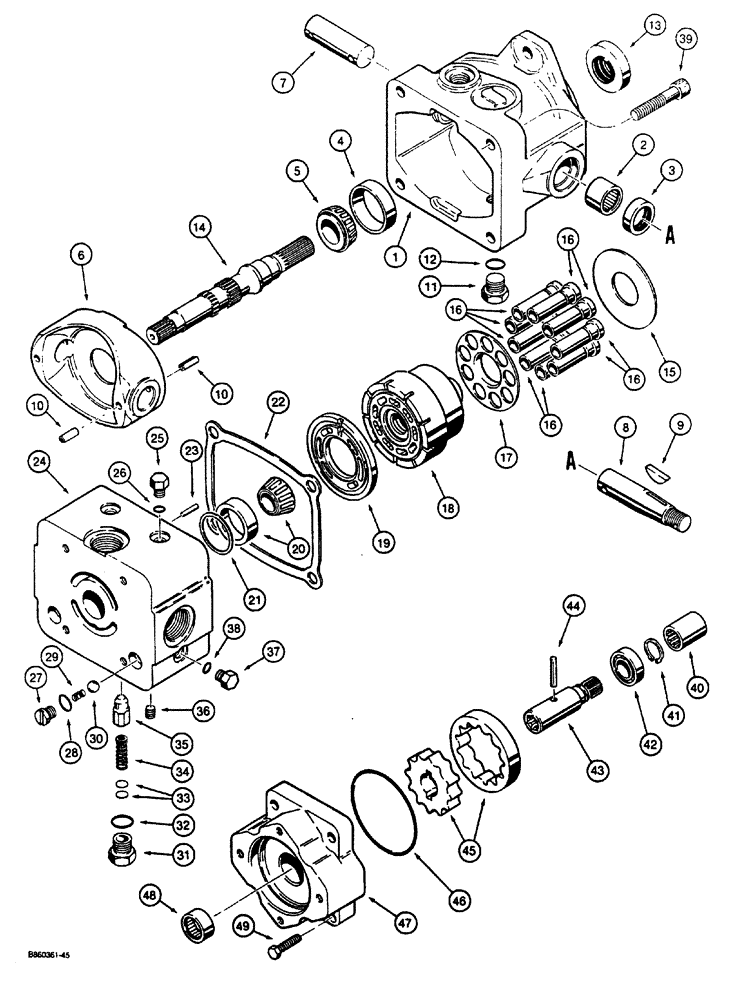

Запчасти Case CASE (6-06) - GROUND DRIVE PUMP (06) - POWER TRAIN

H669747

PUMP

SPARE PART ASSEMBLY ground drive, Sundstrand No. 18-2086, Includes: Ref. 1 - 49

1шт.

N13686

HOUSING

ASSEMBLY input shaft end, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING input shaft end

1шт.

2

A12652

NEEDLE BEARING,1" ID x 1.251" OD x 0.75"

needle, control shaft

2шт.

3

H354001

SEAL ASSY.

lip, bearing

2шт.

4

D29267

BEARING CUP,1.98" OD x 0.42"

tapered roller bearing

1шт.

5

D29266

ROLLER BEARING,1" ID x 0.58"

tapered roller, input shaft, outer

1шт.

6

N7975

LARGE PLATE

PLATE, LARGE swash, pistons

1шт.

7

H351429

SHAFT

trunnion, with pin hole

1шт.

8

H387662

SHAFT

trunnion, tapered and threaded

1шт.

9

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

woodruff, size 17

1шт.

10

138-2069

PIN,5/16" x 3/4", Coiled

Trunnion shafts

4шт.

11

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Housing, Includes: Ref. 12

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug

1шт.

13

H756296

SEAL

lip, input shaft

1шт.

14

H387654

SHAFT

input, pump

1шт.

15

H351379

PLATE, THRUST

1шт.

H632489

BLOCK

ASSEMBLY cylinder, pump, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

PISTON pump

9шт.

17

NSS

NOT SOLD SEPARAT

RETAINER piston

1шт.

18

NSS

NOT SOLD SEPARAT

BLOCK piston

1шт.

19

H351387

LARGE PLATE

PLATE, LARGE valve

1шт.

20

H636497

BEARING

KIT shaft, inner

1шт.

21

NSS

NOT SOLD SEPARAT

SHIM spacer, if used

1шт.

22

H305441

GASKET

housing

1шт.

23

H351445

PIN

valve plate alignment

1шт.

24

N8026

CAP

end, pump

1шт.

25

9672438

PLUG,7/16" - 20 ORB

High pressure gauge port, Incl. Ref. 26

2шт.

26

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Plug

1шт.

H591537

KIT

VALVE ASSEMBLY check, end cap, Includes: Ref. 27 - 30

2шт.

27

D63410

PLUG

check valve

1шт.

29

D63409

VALVE SPRING

check

1шт.

30

211-212

BALL

steel, check valve

1шт.

H591545

LOCK VALVE

ASSEMBLY relief, charge pump, Includes: Ref. 31 - 35

1шт.

31

H387696

PLUG

relief valve

1шт.

33

N7977

BLOCK

KIT shim, relief valve

2шт.

34

H387688

SPRING

relief valve

1шт.

35

H387670

VALVE POPPET

charge pump

1шт.

36

F23137

PLUG

pipe

2шт.

37

9672438

PLUG,7/16" - 20 ORB

End cap, Incl. Ref. 38

2шт.

38

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Plug

1шт.

39

61-736

HEX SOC SCREW,7/16"-14 x 2 1/4"

hex socket head, 7/16"-14 NC x 2-1/4"

4шт.

40

H387639

COUPLING

pump shaft to charge pump shaft

1шт.

41

D46211

SNAP RING,#78, Ext

Ring, Snap, , bearing #78, Ext

1шт.

42

H758458

BALL BEARING

ball, charge pump shaft, inner

1шт.

43

H387647

SHAFT

SPARE PART charge pump

1шт.

N7978

PUMP

KIT charge assembly, Includes: Ref. 44 - 49

1шт.

Charge pump kit has a cover plate, gasket, and four bolts not used in this application.

1шт.

44

H758441

PIN

shaft

1шт.

45

H387738

ROTOR ASSY.

GEROTOR complete

1шт.

46

W15848

O-RING,3.487" ID x 3.693" OD x 0.103"

housing to end cap

1шт.

47

H387704

HOUSING

charge pump

1шт.

48

K620039

NEEDLE BEARING

needle, charge pump shaft, outer

1шт.

49

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

28

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, plug

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Plug

1шт.
