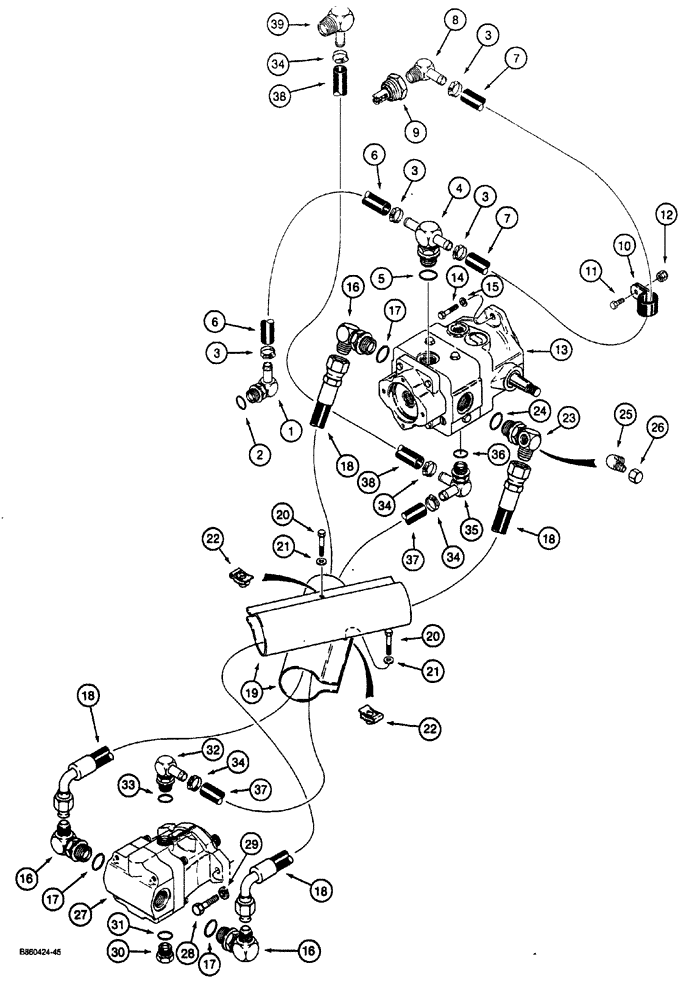

Запчасти Case CASE (6-02) - GROUND DRIVE HYDRAULIC SYSTEM (06) - POWER TRAIN

1

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

Incl. Ref. 2

1шт.

2

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Stem fitting

1шт.

3

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

hose

4шт.

4

H428383

TEE

special, Includes: Ref. 5

1шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Tee

1шт.

6

H352237

HOSE,0.75" ID x 14.50", SAE 30R2 Type 1

Filter to Pump

1шт.

7

H434280

HOSE

pump to reservoir, 3/4" (19 mm) ID x 31-1/2" (800 mm) long

1шт.

8

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

stem, 90 degree

1шт.

9

H428193

VALVE, CHECK

charge, ground drive pump

1шт.

10

D40471

CLAMP

hose

1шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

12

131-1131

LOCK NUT,3/4"-10, GA

hex, self-locking, plated, 3/4"-10 NC

1шт.

13

H669747

PUMP

SPARE PART ASSEMBLY ground drive, parts list Figure 6-06

1шт.

See Figure 2-10 for ground drive pump to engine adapter plate.

1шт.

14

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

15

192-23

LOCK WASHER,1/2"

2шт.

16

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, Includes: Ref. 17

3шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Elbow

1шт.

18

H256461

HOSE

ground drive circuit, 33" (838 mm) long

2шт.

19

H430058

BOOT

hose

2шт.

20

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

21

195-521

WASHER,5/16", SAE

2шт.

22

H346650

NUT

U boot, hose cover

2шт.

23

H219568

ADAPTER

SPARE PART ELBOW special, side outlet, Includes: Ref. 24

1шт.

24

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Elbow

1шт.

25

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ELBOW, 90 degree

1шт.

26

218-755

CAP,37 Degree, 3/4"-16

1шт.

27

REF

INSTRUCTION

MOTOR ASSEMBLY ground drive, parts list Figure 6-10 or 6-11A

1шт.

28

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

29

192-23

LOCK WASHER,1/2"

2шт.

30

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 31

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Plug

1шт.

32

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

Incl. Ref. 33

1шт.

33

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Stem fitting

1шт.

34

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

hose

4шт.

35

H339762

TEE

special, Includes: Ref. 36

1шт.

36

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Tee

1шт.

37

REF

INSTRUCTION

HOSE case drain from ground drive motor, 3/4" (19 mm) ID x 51" (1295 mm) long, cut from H373639 bulk hose, see below

1шт.

38

REF

INSTRUCTION

HOSE case drain to reservoir, 3/4" (19 mm) ID x 20" (508 mm) long, cut from H379214 bulk hose, see below

1шт.

39

217-330

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1" Male NPTF

stem, 90 degree

1шт.

H373639

HOSE ASSY.

bulk, 3/4" (19 mm) ID x 118" (2997 mm) long, use to make Ref. 37

1шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

Use to make Ref. 38

1шт.
