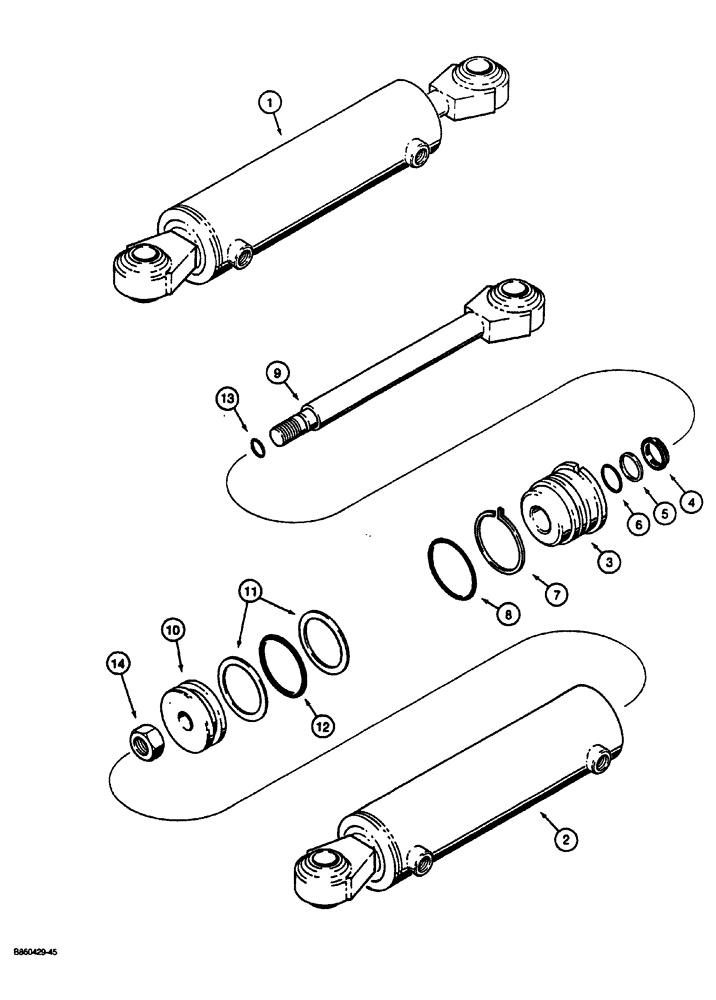

Запчасти Case CASE (5-18) - STEERING CYLINDER (05) - STEERING

1

H624528

STEERING CYLINDER

SPARE PART ASSEMBLY, 2-3/8" (60.5 mm) ID x 5" (127 mm) stroke, Lantex No. 3006-TM, Includes: Ref. 2 - 14

1шт.

2

H636845

CYLINDER

TUBE

1шт.

3

H347765

GLAND

cylinder

1шт.

4

H755793

RETAINER

WIPER rod

1шт.

Part of Seal Kit P/N H630186

1шт.

5

A35899

RING

backup, small O-ring, gland inner, piston rod

1шт.

Part of Seal Kit P/N H630186

1шт.

6

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

small, gland inner, piston rod

1шт.

Part of Seal Kit P/N H630186

1шт.

7

H207027

LOCK ASSY

WIRE gland

1шт.

Part of Seal Kit P/N H630186

1шт.

8

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

gland, outer

1шт.

Part of Seal Kit P/N H630186

1шт.

9

H636852

PISTON ROD

1" (25.4 mm) diameter

1шт.

10

H347757

PISTON

cylinder

1шт.

11

B17300

O-RING

backup, piston seal, outer

2шт.

Part of Seal Kit P/N H630186

1шт.

12

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

SEAL piston, outer

1шт.

Part of Seal Kit P/N H630186

1шт.

13

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

piston, inner, rod

1шт.

Part of Seal Kit P/N H630186

1шт.

14

131-172

LOCK NUT,3/4"-16, GA

hex, self-locking, plated, 3/4"-16 NF

1шт.

H630186

GASKET KIT

seal, Includes: Ref. 4, 5, 6, 7, 8, 11, 12 and 13

1шт.
