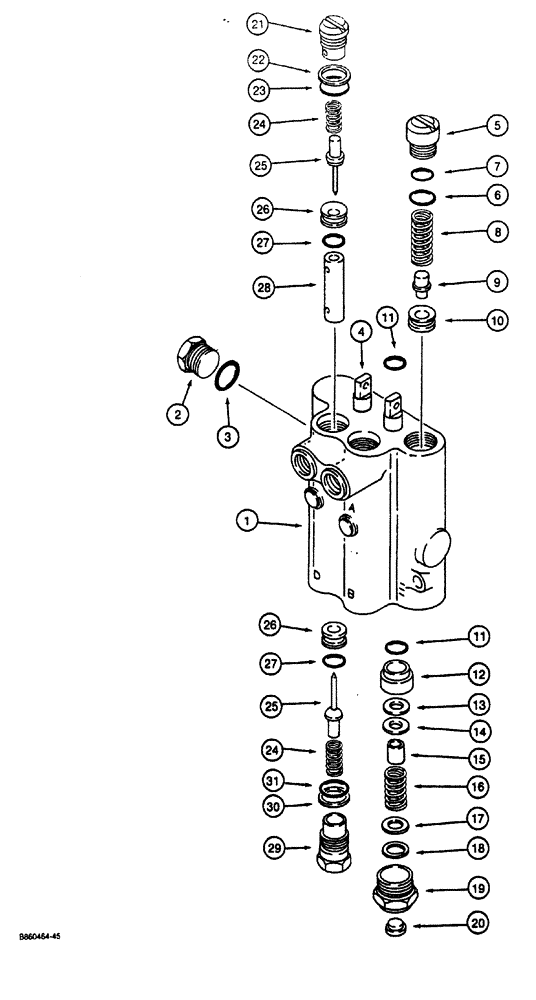

Запчасти Case CASE (5-16) - STEERING AND ATTACHMENT LIFT CONTROL VALVE (05) - STEERING
№
Артикул
Название
Примечание
Количество
H656454
VALVE
ASSEMBLY control, steering and attachment lift, 2 spool, Cessna No. 31922-CAZ, Includes: Ref. 1 - 31
1шт.
1
NSS
NOT SOLD SEPARAT
BODY valve
1шт.
N9862
PLUG
ASSEMBLY special, valve body, Includes: Ref. 2 and 3
1шт.
2
NSS
NOT SOLD SEPARAT
PLUG special, valve body
1шт.
3
A7982
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
plug
1шт.
4
NSS
NOT SOLD SEPARAT
SPOOL steering control valve
2шт.
F37892
PLUG
ASSEMBLY relief valve, Includes: Ref. 5 and 6
1шт.
5
NSS
NOT SOLD SEPARAT
PLUG relief valve
1шт.
6
D48359
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
plug
1шт.
7
H746149
SHIM,.015" Thk
Relief valve (0.4 mm)
1шт.
7
F12267
WASHER
SHIM relief valve, .010" (0.3 mm) thick
1шт.
7
H220798
SHIM,.035" Thk
Relief valve (0.9 mm)
1шт.
8
L33609
SPRING
relief valve, color coded purple
1шт.
9
F37837
VALVE POPPET
relief
1шт.
10
NSS
NOT SOLD SEPARAT
SEAT relief valve
1шт.
11
A27410
O-RING,0.487" ID x 0.693" OD x 0.103"
spool
4шт.
12
F36304
BUSHING
valve body
2шт.
13
H253054
WASHER
special, middle, .020" (0.5 mm) thick
2шт.
14
H253062
WASHER
special, upper, .046" (1.2 mm) thick
2шт.
15
F36239
SPACER
spool
2шт.
16
F36306
SPRING
spool centering
2шт.
17
F36908
WASHER
special, lower, .065" (1.7 mm) thick
2шт.
18
H758367
RING
retaining, washer
2шт.
19
H375667
CAP
valve body
2шт.
20
205-14
HOLE PLUG BUTTON,3/8"
INSERT button
2шт.
H636977
PLUG
ASSEMBLY seat retaining, Includes: Ref. 21 - 23
2шт.
21
NSS
NOT SOLD SEPARAT
PLUG seat retaining
1шт.
22
G32626
RING
backup, plug O-ring
1шт.
23
H755975
O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro
plug
1шт.
24
H364182
SPRING
poppet
4шт.
25
F77048
VALVE POPPET
4шт.
H636951
SEAT
ASSEMBLY poppet, Includes: Ref. 26 and 27
4шт.
26
NSS
NOT SOLD SEPARAT
SEAT poppet
1шт.
27
A18414
O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro
seat
1шт.
28
F8229
PLUNGER
valve
2шт.
H636969
FITTING
PLUG ASSEMBLY lower port, Includes: Ref. 29 - 31
2шт.
29
NSS
NOT SOLD SEPARAT
PLUG lower port
1шт.
30
G32626
RING
backup, plug O-ring
1шт.
31
H755975
O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro
plug
1шт.
Выбрано товаров: 39
