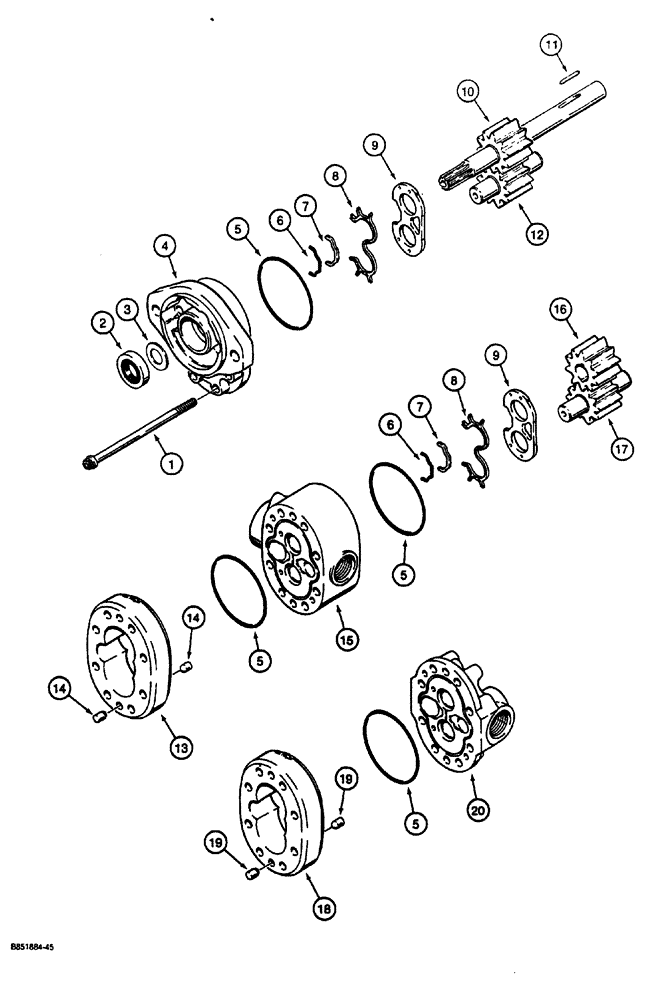

Запчасти Case CASE (5-14) - DUAL PUMP (05) - STEERING

H669184

PUMP

ASSEMBLY dual, Cessna No. 25385-RAE, Includes: Ref. 1 - 20

1шт.

1

166-39

SPARE PART ferry head, 5/16"-18 NC x 5-1/4"

8шт.

2

H83733

SEAL

shaft

1шт.

Part of Seal Kit P/N N13450

1шт.

3

N13135

WASHER

special, shaft seal

1шт.

4

N8932

COVER

pump, drive shaft end

1шт.

5

H758599

O-RING,2.989" ID x 3.129" OD

pump body

4шт.

Part of Seal Kit P/N N13450

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL molded

2шт.

Part of Seal Kit P/N N13450

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL bearing

2шт.

Part of Seal Kit P/N N13450

1шт.

8

NSS

NOT SOLD SEPARAT

GASKET wear plate

2шт.

Part of Seal Kit P/N N13450

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE wear, pump housing

2шт.

Part of Seal Kit P/N N13450

1шт.

10

N13656

GEAR

SHAFT pump

1шт.

11

N13654

KEY

drive gear shaft

1шт.

12

N13444

GEAR

SHAFT pump, drive shaft end

1шт.

N8887

BODY

HOUSING ASSEMBLY gear, drive shaft end, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING gear, drive shaft end

1шт.

14

71120

VALVE

PIN dowel, drive shaft end gear housing

4шт.

15

N13445

PLATE

BODY pump, center

1шт.

16

N13655

GEAR

rear, slip fit, drive shaft

1шт.

17

N13658

SPROCKET ASSY.

DRIVEN GEAR AND SHAFT pump, rear

1шт.

N13657

BODY

HOUSING ASSEMBLY gear, port end, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING gear, port end

1шт.

19

71120

VALVE

PIN dowel, port end gear housing

4шт.

20

H435647

PLATE

COVER pump, port end, Replaces: N13442

1шт.

N13450

SEAL KIT

Includes: Ref. 2, 5, 6, 7, 8 and 9

1шт.
