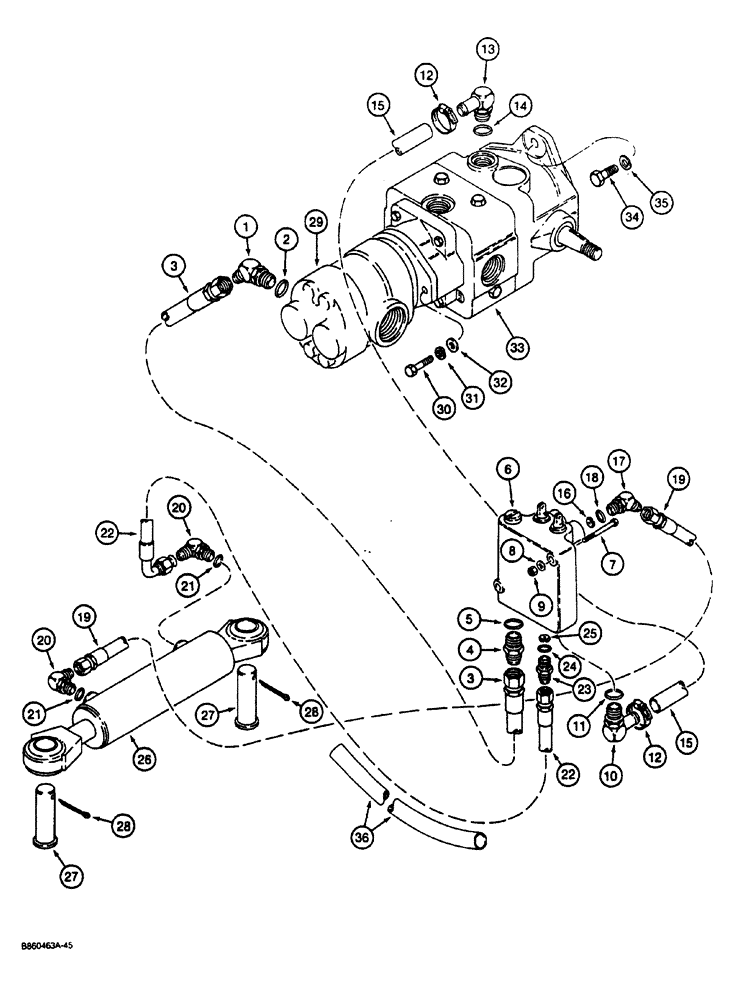

Запчасти Case CASE (5-12) - STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

ELBOW adjustable, 45 degree, Includes: Ref. 2

1шт.

2

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

3

H248492

HYDRAULIC HOSE,9.52 mm ID x 736.60 mm, SAE 100R1

Pump to Steering Valve

1шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, Incl. Ref 5

1шт.

6

H656454

VALVE

ASSEMBLY control, steering and attachment lift, parts list Figure 5-16

1шт.

7

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

8

H426767

WASHER

flat, hardened, 1/4"

2шт.

9

131-1180

LOCK NUT,1/4"-20, GA

2шт.

10

217-396

FITTING,3/4" Hose Barb x 3/4" - 16 Male ORB

FITTING stem, adjustable, 90 degree, Includes: Ref. 11

1шт.

12

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

hose

2шт.

13

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

Incl. Ref. 14

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Stem fitting

1шт.

15

REF

INSTRUCTION

HOSE steering valve return, 3/4" (19 mm) ID x 35" (889 mm) long, cut from H379214 bulk hose, see below

1шт.

16

H759084

ORIFICE

RESTRICTOR, to steering cylinder rod end

1шт.

17

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Adj., Incl. Ref. 18

1шт.

18

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Elbow

1шт.

19

H172965

HYDRAULIC HOSE,6.35 mm ID x 939.60 mm, SAE 100R1

Valve to Rod End of Steering Cylinder

1шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Adjustable, Includes Ref. 21

2шт.

21

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Elbow

1шт.

22

H434595

HOSE ASSY.

valve to head end of steering cylinder, 24" (700 mm) long

1шт.

23

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 24

1шт.

24

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Adapter

1шт.

25

H757815

PORT

RESTRICTOR, to steering cylinder head end

1шт.

26

H624528

STEERING CYLINDER

SPARE PART ASSEMBLY, parts list Figure 5-18

1шт.

27

H67272

PIN,25.3mm OD x 84.93mm L

PIN special

2шт.

28

132-307

COTTER PIN,1/4" x 1 3/4"

2шт.

29

H669184

PUMP

ASSEMBLY dual, parts list Figure 5-14

1шт.

30

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

31

192-21

LOCK WASHER,3/8"

2шт.

32

195-525

WASHER,3/8", SAE

2шт.

33

H669747

PUMP

SPARE PART ASSEMBLY ground drive, parts list Figure 6-06

1шт.

34

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

35

192-23

LOCK WASHER,1/2"

2шт.

36

D131789

SLEEVE

hose protector

1шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

Use to make Ref. 15

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Adapter

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Stem fitting

1шт.
