(5-10) - CREEP CONTROL LEVER AND STEERING CONTROL VALVE LINKAGE

Запчасти Case CASE (5-10) - CREEP CONTROL LEVER AND STEERING CONTROL VALVE LINKAGE (05) - STEERING

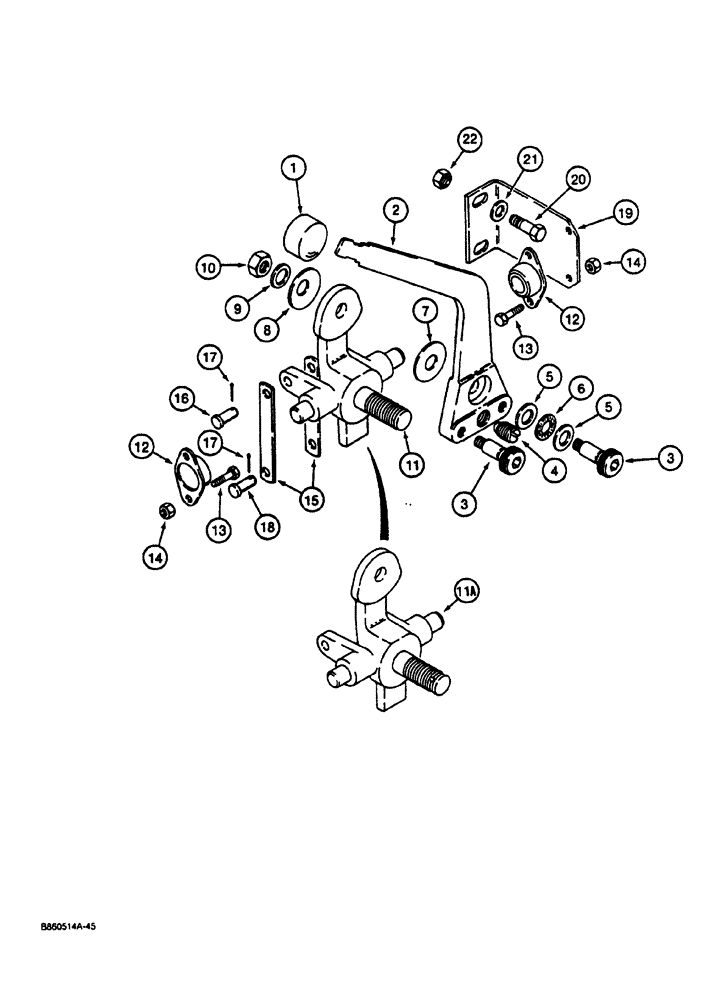

Схема запчастей Case CASE - (5-10) - CREEP CONTROL LEVER AND STEERING CONTROL VALVE LINKAGE (05) - STEERING
15
11a
3
13
2
17
16
6
5
19
11
21
18
1
3
12
13
9
10
8
17
4
22
14
5
20
7
14
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A177435

BALL KNOB

creep control

1шт.

2

H672327

HANDLE

creep control

1шт.

3

H404822

BOLT

special

3шт.

4

H404731

GUIDE

SCREW special, centering

1шт.

5

H405035

BEARING WASHER

WASHER thrust, creep control handle

2шт.

6

H405043

BEARING WASHER,12.75mm ID x 23.55mm OD x 1.98mm Thk

thrust, creep control handle

1шт.

7

H429894

WASHER

DISC friction, creep control handle

1шт.

8

R14771

WASHER

SPRING belleview, drive control link

1шт.

9

195-525

WASHER,3/8", SAE

1шт.

10

230-4216

LOCK NUT,3/8"-16, GA

1шт.

11

H433501

PIVOT

LINK drive control, used on models, Serial Range: -JAF0023485

1шт.

11a

H435855

PIVOT

LINK drive control, used on models with, Start Serial: JAF0023485

1шт.

12

H755785

FLANGED BEARING,15.88mm ID

drive control link

2шт.

13

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

14

131-1180

LOCK NUT,1/4"-20, GA

4шт.

15

H423053

LINK

creep control

2шт.

16

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

PIN special, 1/4" x 51/64" long

1шт.

17

132-328

COTTER PIN,1/16" x 1/2"

2шт.

18

H44529

AXLE PIN

clevis

1шт.

19

H426163

ANGLE

BRACKET link mounting

1шт.

20

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

21

195-521

WASHER,5/16", SAE

2шт.

22

131-1215

LOCK NUT,5/16"-18, GC

2шт.
