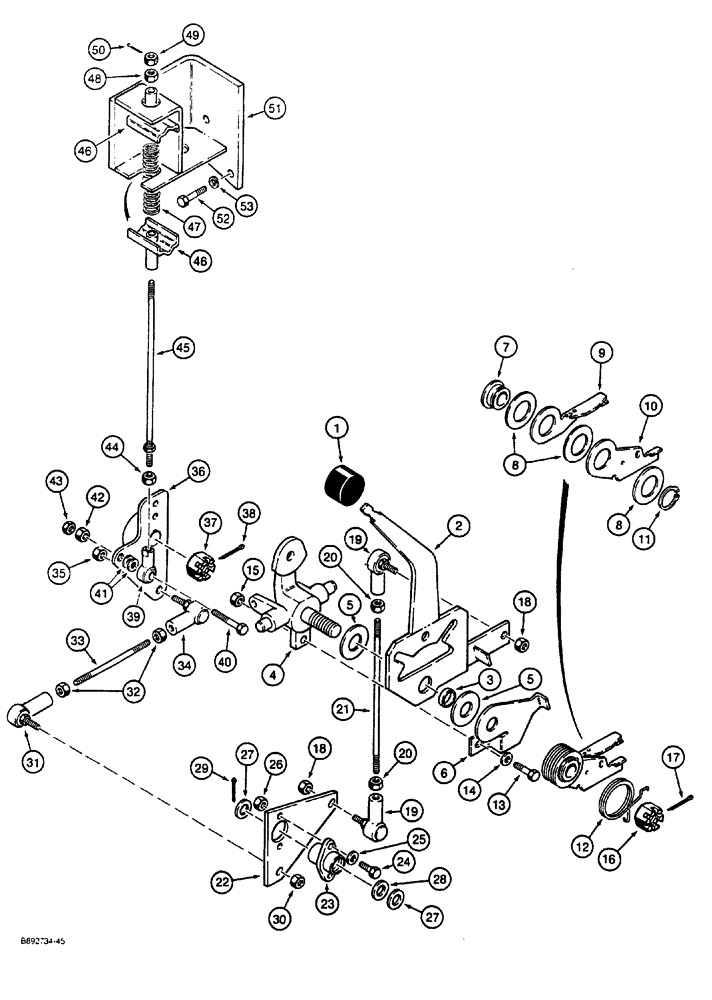

Запчасти Case CASE (5-06) - DIRECTIONAL CONTROLS AND NEUTRAL CONTROL, USED ON MODELS WITH P.I.N. JAF0023485 AND AFTER (05) - STEERING

1

A177435

BALL KNOB

directional control handle

1шт.

2

H673413

HANDLE

directional control, Includes: Ref. 3

1шт.

3

H433184

BEARING

BUSHING directional control handle

1шт.

4

H435855

PIVOT

LINK drive control

1шт.

5

H433170

WASHER

SPACER directional control handle

2шт.

6

H436230

LARGE PLATE

PLATE, LARGE centering

1шт.

H673263

MOUNTING PARTS

ASSEMBLY neutral start switch, Includes: Ref. 7 - 11

1шт.

7

H435800

HUB

bracket

1шт.

8

H257915

SHIM,0.813mm Thk

Bracket

3шт.

9

H436226

CONTACT PLATE

PLATE, LARGE switch contact

1шт.

10

H436227

PLATE

switch mounting

1шт.

11

F62020

SNAP RING,#125, Ext

#125, Ext

1шт.

12

H436231

SPRING

mount assembly

1шт.

13

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

14

H426775

WASHER

flat, hardened, 11/32" x 11/16" x 3/64"

1шт.

15

131-1215

LOCK NUT,5/16"-18, GC

1шт.

16

129-287

SLOTTED NUT,3/4"-10, G5

1шт.

17

132-345

COTTER PIN,3/16" x 1 1/2"

1шт.

18

131-1246

LOCK NUT,5/16"-24, GC

hex, self-locking, plated, 1/4"-28 NF

2шт.

19

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT, 5/16"-25 NF

2шт.

20

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

21

H423160

ROD

direction control

1шт.

22

H431288

ARM ASSY.

PLATE control, linkage

1шт.

23

A162299

BEARING,15.95mm ID

BEARING control plate

1шт.

24

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

25

195-518

WASHER,1/4", SAE

2шт.

26

131-1180

LOCK NUT,1/4"-20, GA

2шт.

27

195-541

WASHER,5/8", SAE

2шт.

28

H94490

WASHER

special

1шт.

29

132-316

COTTER PIN,3/32" x 1 1/4"

1шт.

30

131-1246

LOCK NUT,5/16"-24, GC

hex, self-locking, plated, 1/4"-28 NF

1шт.

31

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT, 5/16"-24 NF

1шт.

32

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

33

H431270

ROD

control plate to pump arm

1шт.

34

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT, 5/16"-24 NF

1шт.

35

131-1246

LOCK NUT,5/16"-24, GC

hex, self-locking, plated, 1/4"-28 NF

1шт.

36

H671024

ARM ASSY.

pump control

1шт.

37

86632554

SLOTTED NUT,3/4"-16, G5

hex, slotted, plated, 3/4"-16 NF

1шт.

38

132-345

COTTER PIN,3/16" x 1 1/2"

1шт.

39

S108030

JOINT

ball, 3/8"-24 NF

1шт.

40

28-632

BOLT,Hex, 3/8" - 24 x 2", Gr 8

hex head, 3/8"-24 NF x 2", grade 8

1шт.

41

195-525

WASHER,3/8", SAE

2шт.

42

131-1133

NUT,3/8"-24, GC

hex, self-locking, plated, 3/8"-24 NF

1шт.

43

86585245

SPECIAL NUT,JAM, 5/8" - 18

1шт.

44

129-123

NUT,3/8"-24, G5

1шт.

45

H668186

STEM

ROD centering

1шт.

46

H668194

CHANNEL

RETAINER spring

2шт.

47

D70304

COMPRESSION SPRING,0.955" OD x 4.00" L

centering

1шт.

48

131-1133

NUT,3/8"-24, GC

hex, self-locking, plated, 3/8"-24 NF

1шт.

49

86585245

SPECIAL NUT,JAM, 5/8" - 18

1шт.

50

132-310

COTTER PIN,1/8" x 1"

1шт.

51

H670810

BRACKET

SPARE PART retainer mounting

1шт.

52

827-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9

hex head, plated, 10 mm-1.5 x 35 mm, 10.9

2шт.

53

892-1110

LOCK WASHER,M10

2шт.
