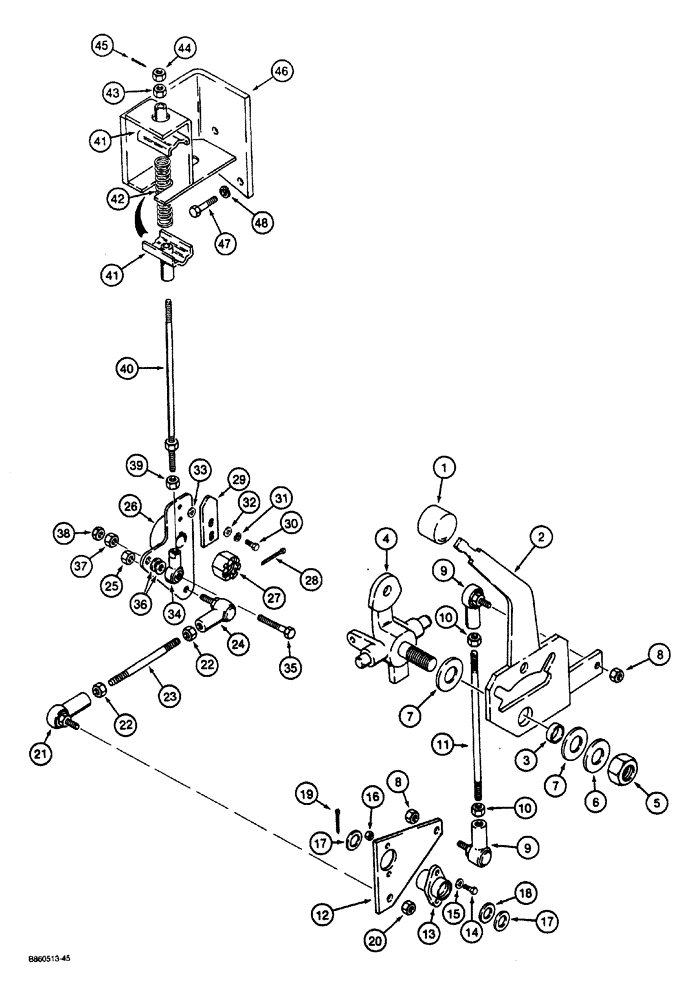

Запчасти Case CASE (5-02) - DIRECTIONAL CONTROLS AND NEUTRAL CONTROL, USED ON MODELS PRIOR TO P.I.N. JAF0023485 (05) - STEERING

1

A177435

BALL KNOB

directional control handle

1шт.

2

H672393

HANDLED SHAFT

directional control, Includes: Ref. 3

1шт.

3

H433184

BEARING

BUSHING directional control handle

1шт.

4

H433501

PIVOT

LINK drive control

1шт.

5

129-287

SLOTTED NUT,3/4"-10, G5

1шт.

6

195-545

WASHER,3/4", SAE

flat, plated, 3/4"

1шт.

7

H433170

WASHER

SPACER directional control handle

2шт.

8

131-1246

LOCK NUT,5/16"-24, GC

hex, self-locking, plated, 1/4"-28 NF

2шт.

9

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT, 5/16"-24 NF

2шт.

10

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

11

H423160

ROD

direction control

1шт.

12

H431288

ARM ASSY.

PLATE control, linkage

1шт.

13

A162299

BEARING,15.95mm ID

BEARING control plate

1шт.

14

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

15

195-518

WASHER,1/4", SAE

2шт.

16

131-1180

LOCK NUT,1/4"-20, GA

2шт.

17

195-541

WASHER,5/8", SAE

2шт.

18

H94490

WASHER

special

1шт.

19

132-316

COTTER PIN,3/32" x 1 1/4"

1шт.

20

131-1246

LOCK NUT,5/16"-24, GC

hex, self-locking, plated, 1/4"-28 NF

1шт.

21

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT, 5/16"-24 NF

1шт.

22

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

23

H431270

ROD

control plate to pump arm

1шт.

24

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT, 5/16"-24 NF

1шт.

25

131-1246

LOCK NUT,5/16"-24, GC

hex, self-locking, plated, 1/4"-28 NF

1шт.

26

H671024

ARM ASSY.

pump control

1шт.

27

86632554

SLOTTED NUT,3/4"-16, G5

hex, slotted, plated, 3/4"-16 NF

1шт.

28

132-345

COTTER PIN,3/16" x 1 1/2"

1шт.

29

H426205

ACTUATOR

neutral start switch

1шт.

30

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

32

H426767

WASHER

flat, hardened, 1/4"

2шт.

33

H426767

WASHER

flat, hardened, 1/4"

1шт.

34

S108030

JOINT

ball, 3/8"-24 NF

1шт.

35

28-632

BOLT,Hex, 3/8" - 24 x 2", Gr 8

hex head, 3/8"-24 NF x 2", grade 8

1шт.

36

195-525

WASHER,3/8", SAE

2шт.

37

131-1133

NUT,3/8"-24, GC

hex, self-locking, plated, 3/8"-24 NF

1шт.

38

86585245

SPECIAL NUT,JAM, 5/8" - 18

1шт.

39

129-123

NUT,3/8"-24, G5

1шт.

40

H668186

STEM

centering

1шт.

41

H668194

CHANNEL

RETAINER spring

2шт.

42

D70304

COMPRESSION SPRING,0.955" OD x 4.00" L

centering

1шт.

43

131-1133

NUT,3/8"-24, GC

hex, self-locking, plated, 3/8"-24 NF

1шт.

44

86585245

SPECIAL NUT,JAM, 5/8" - 18

1шт.

45

132-310

COTTER PIN,1/8" x 1"

1шт.

46

H670810

BRACKET

SPARE PART retainer mounting

1шт.

47

827-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9

hex head, plated, 10 mm-1.5 x 35 mm, 10.9

2шт.

48

892-1110

LOCK WASHER,M10

2шт.
