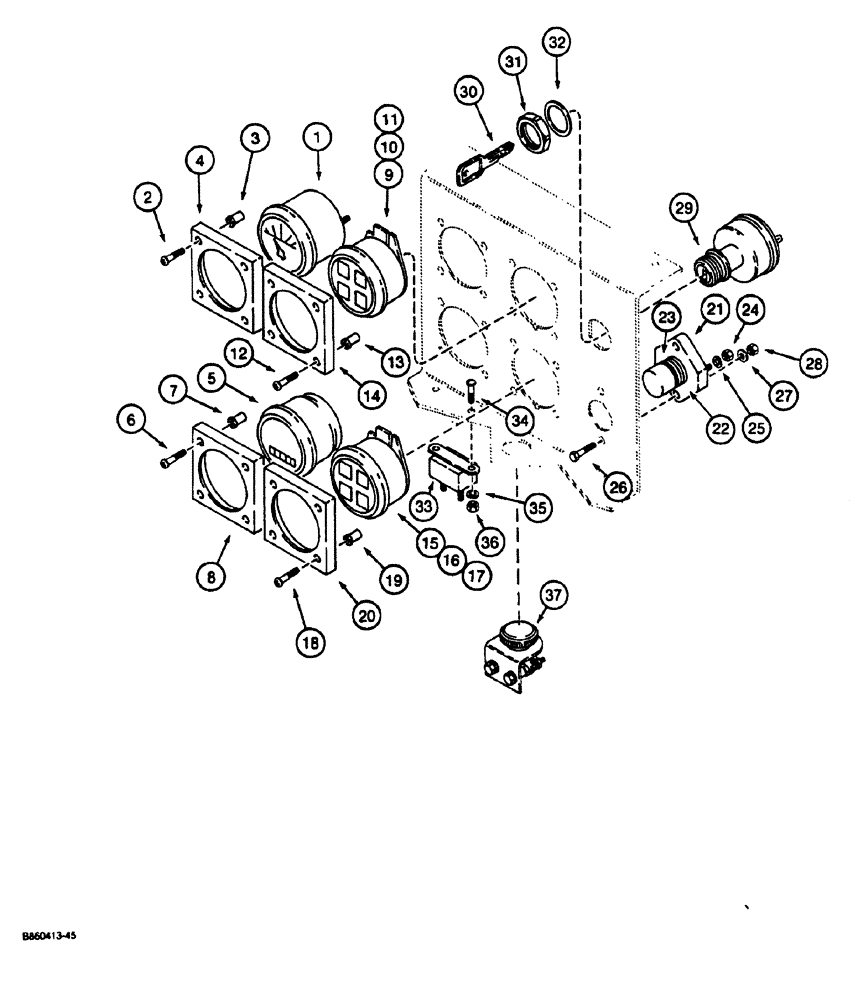

Запчасти Case CASE (4-14) - INSTRUMENTS AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

H432872

ELECTRICAL GAUGE

SPARE PART fuel

1шт.

2

179-164

SCREW,Cross Oval Hd, #6 - 32 x 7/8"

machine, Phillips head, No. 6-32 NC x 7/8"

4шт.

3

D121600

ISOLATOR

cover mounting screw

4шт.

4

D121637

COVER

warning lamps and gauges

1шт.

5

D121644

GAUGE

HOURMETER engine

1шт.

6

179-164

SCREW,Cross Oval Hd, #6 - 32 x 7/8"

machine, Phillips head, No. 6-32 NC x 7/8"

4шт.

7

D121600

ISOLATOR

cover mounting screw

4шт.

8

D121637

COVER

warning lamps and gauges

1шт.

D124576

CLUSTER

LAMP warning, engine and alternator, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

BODY lamp

1шт.

10

N8320

BULB

lamp

4шт.

11

N13259

SOCKET

lamp

1шт.

12

179-164

SCREW,Cross Oval Hd, #6 - 32 x 7/8"

machine, Phillips head, No. 6-32 NC x 7/8"

4шт.

13

D121600

ISOLATOR

cover mounting screw

4шт.

14

D121637

COVER

warning lamps and gauges

1шт.

D124575

CLUSTER

SPARE PART LAMP warning, seat belt and hydraulics, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

BODY lamp

1шт.

16

N8320

BULB

lamp

4шт.

17

N13259

SOCKET

lamp

1шт.

18

179-164

SCREW,Cross Oval Hd, #6 - 32 x 7/8"

machine, Phillips head, No. 6-32 NC x 7/8"

4шт.

19

D121600

ISOLATOR

cover mounting screw

4шт.

20

D121637

COVER

warning lamps and gauges

1шт.

H35048

IGNITION SWITCH

engine heater, Includes: Ref. 21 - 25

1шт.

21

NSS

NOT SOLD SEPARAT

SWITCH heater

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING heater switch

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING switch

1шт.

24

129-122

NUT,5/16"-24, G5

2шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

26

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

27

195-518

WASHER,1/4", SAE

2шт.

28

131-1180

LOCK NUT,1/4"-20, GA

2шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY key, includes keys, Includes: Ref. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

SWITCH key

1шт.

30

A77313

SET OF 2 KEYS

metal without padding

1шт.

31

A77314

NUT

hex, special, key switch mounting

1шт.

32

F67231

WASHER

special

1шт.

33

L104328

BREAKER

circuit, 25 amp.

1шт.

34

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

machine, round head slotted, plated, No. 10-24 NC x 3/4"

2шт.

35

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

2шт.

36

129-17

NUT,Hex, #10 - 24

2шт.

37

N13890

INDICATOR

glow plugs

1шт.
