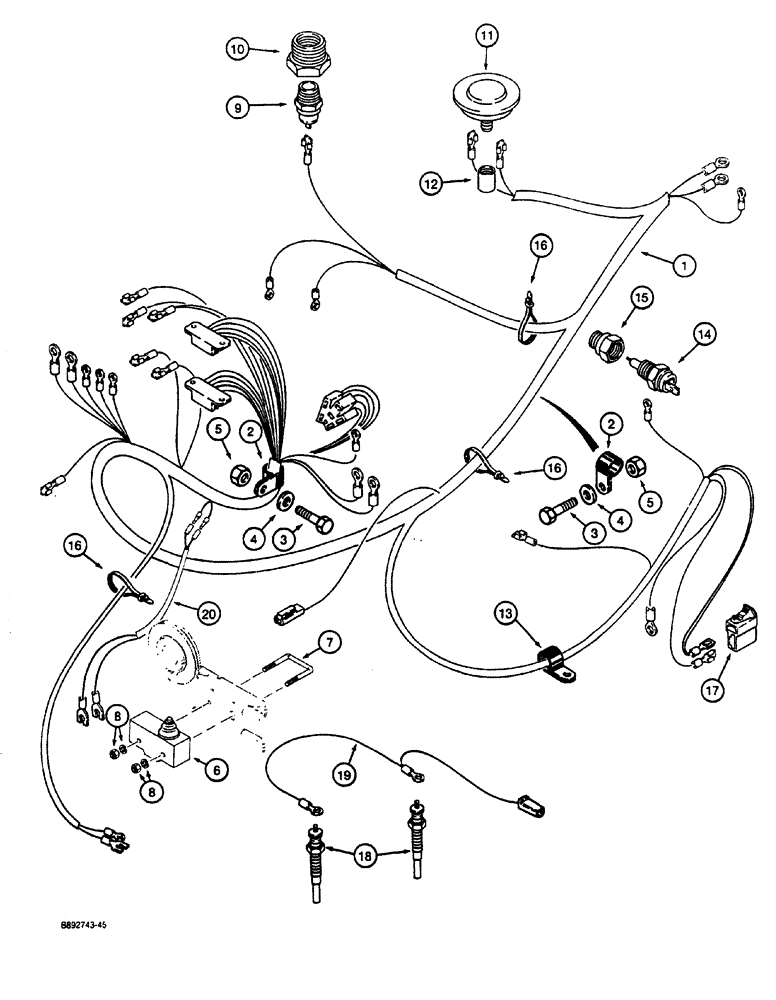

Запчасти Case CASE (4-12) - MAIN WIRING HARNESS AND CONNECTIONS, USED ON MODELS WITH P.I.N. JAF0023485 AND AFTER (04) - ELECTRICAL SYSTEMS

1

H423947

HARNESS

main wiring

1шт.

2

NLS

NO LONGER SERVICED

harness

2шт.

3

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

4

195-525

WASHER,3/8", SAE

2шт.

5

131-1216

LOCK NUT,3/8"-16, GC

2шт.

6

H435820

SWITCH

neutral start

1шт.

7

H435814

U-BOLT

neutral start switch

1шт.

8

193-1003

NUT,Keps, w/LW,#6-32

2шт.

9

H81935

SENDER UNIT

SENDER SWITCH oil temperature

1шт.

10

221-607

REDUCER,Hex, 1 1/4" x 1/2" NPT

REDUCER, 1-1/4" x 1/2" NPT

1шт.

11

L103131

INDICATOR

SWITCH air cleaner restriction

1шт.

12

221-335

COUPLING,Pipe, 1/8" NPT

1/8" NPT

1шт.

13

49838

CLAMP

harness

1шт.

14

L50238

SWITCH

water temperature and hydraulic oil

1шт.

15

H358226

ADAPTER

water temperature and hydraulic oil switch

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, harness

1шт.

17

N13889

CONNECTOR, ELEC

SPARE PART main wiring, Serial Range: harness-alternator

1шт.

18

H421255

GLOW PLUG

2шт.

19

N13881

ELECTRICAL WIRE

SPARE PART connection

1шт.

20

H436489

HARNESS

neutral start switch

1шт.
