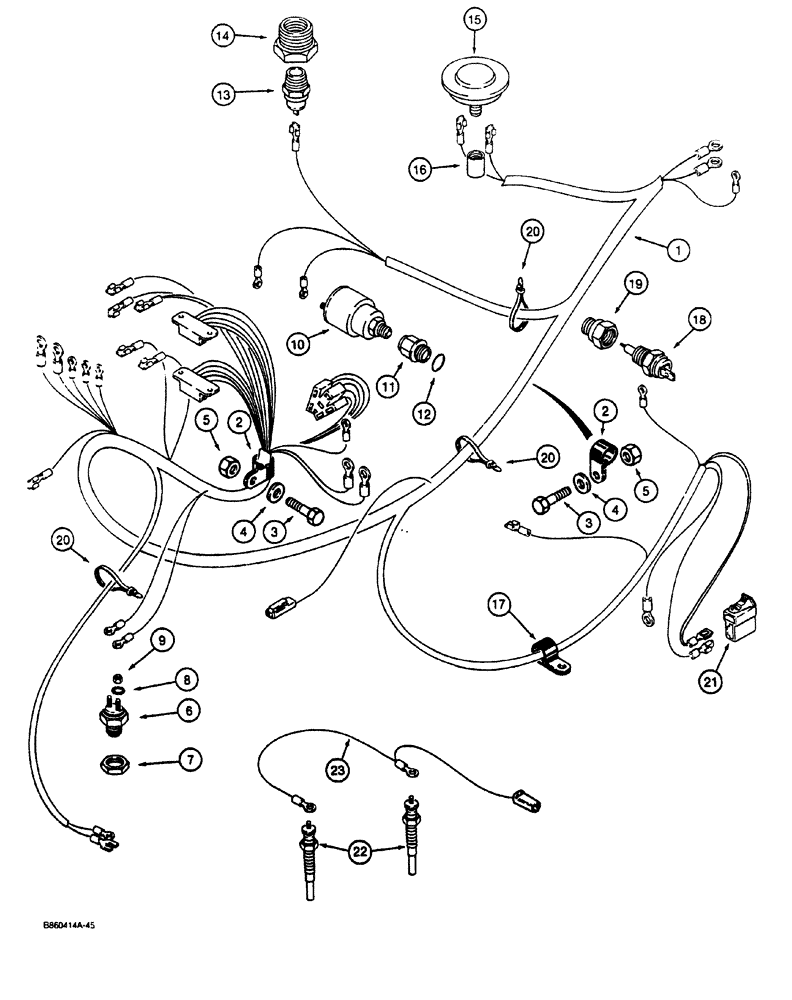

Запчасти Case CASE (4-10) - MAIN WIRING HARNESS AND CONNECTIONS, USED ON MODELS PRIOR TO P.I.N. JAF0023485 (04) - ELECTRICAL SYSTEMS

1

H423947

HARNESS

main wiring

1шт.

2

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

harness

2шт.

3

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

4

195-525

WASHER,3/8", SAE

2шт.

5

131-1216

LOCK NUT,3/8"-16, GC

2шт.

6

A160237

SWITCH

SWITCH - neutral start

1шт.

7

129-166

JAM NUT,Jam, 9/16"-18, G5

1шт.

8

193-90

LOCK WASHER,Ext, #8

2шт.

9

129-16

NUT,#8-32

2шт.

10

D123864

SWITCH

charge pressure, used on models no longer required, Serial Range: -JAF0003351

1шт.

11

218-5098

FITTING

straight, used on models no longer required, Includes: Ref. 12, Serial Range: -JAF0003351

1шт.

12

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Adapter

1шт.

13

H81935

SENDER UNIT

SENDER SWITCH oil temperature

1шт.

14

221-607

REDUCER,Hex, 1 1/4" x 1/2" NPT

REDUCER, 1-1/4" x 1/2" NPT

1шт.

15

L103131

INDICATOR

SWITCH air cleaner restriction

1шт.

16

221-335

COUPLING,Pipe, 1/8" NPT

1/8" NPT

1шт.

17

49838

CLAMP

harness

1шт.

18

L50238

SWITCH

water temperature and hydraulic oil

1шт.

19

H358226

ADAPTER

water temperature and hydraulic oil switch

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, harness

1шт.

21

N13889

CONNECTOR, ELEC

SPARE PART main wiring, Serial Range: harness-alternator

1шт.

22

H421255

GLOW PLUG

2шт.

23

N13881

ELECTRICAL WIRE

SPARE PART connection

1шт.
