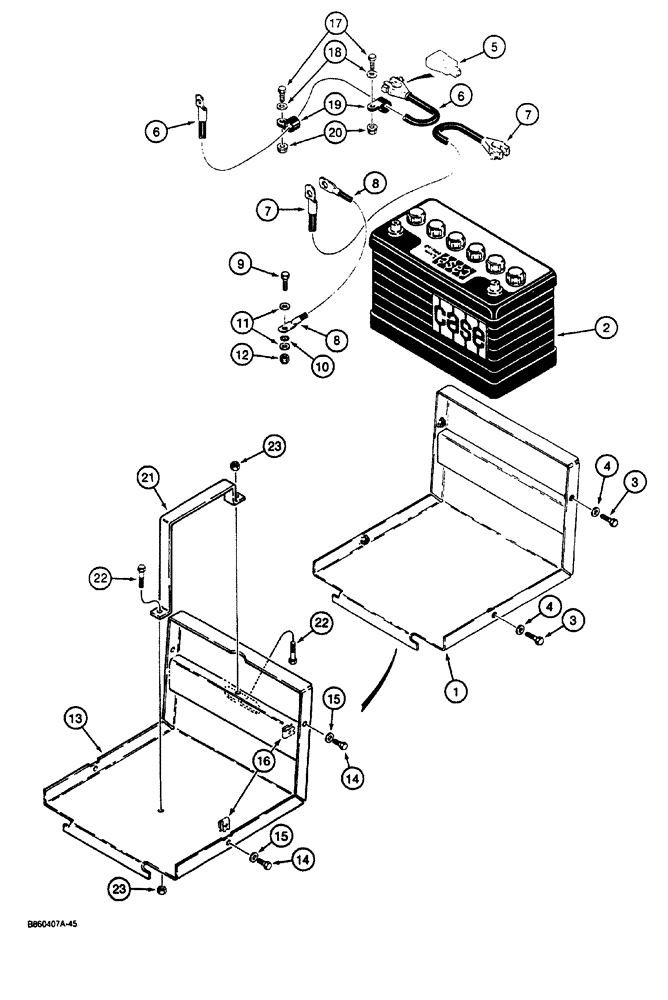

Запчасти Case CASE (4-08) - BATTERY, MOUNTING, AND CABLES (04) - ELECTRICAL SYSTEMS

1

H625673

RACK

battery retaining, no longer available, order Ref. 13 - 16 for service

1шт.

2

BHC30

BATTERY, DRY

BATTERY DRY 12 volt, service replacement, used with Ref. 1 bracket only

1шт.

3

187-1070

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

hex head, self-tapping, 5/16"-18 NC x 1", used with Ref. 1 bracket only

4шт.

4

H426775

WASHER

flat, hardened, plated

4шт.

5

H102681

COVER ASSY

battery terminal

1шт.

6

H519348

NEG BATTERY CABLE

positive, Replaces: H84707

1шт.

7

H106096

CABLE PULLING GRIP

battery, negative

1шт.

8

H256990

CABLE PULLING GRIP

ground, Serial Range: engine-frame

1шт.

9

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

10

193-9

LOCK WASHER,Ext Tooth, 5/16"

1шт.

11

H426775

WASHER

flat, hardened, plated

2шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Hex

1шт.

13

H673382

SUPPORT

battery retaining

1шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Used with Ref. 13 bracket only

4шт.

15

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 3/8", used with Ref. 13 bracket only

4шт.

16

131-634

SPRING NUT,J, Ret, 3/8"-16

J type, 3/8" NC, used with Ref. 13 bracket only

4шт.

17

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

18

H426775

WASHER

flat, hardened, 11/32" x 11/16" x 3/64"

2шт.

19

49838

CLAMP

P type

2шт.

20

131-931

FLANGE NUT,Flg, USR, 5/16"-18

hex, flange type, special locking, 5/16" NC

2шт.

21

H436777

SUPPORT

battery, used on models with only, Start Serial: JAF0023425

1шт.

22

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

23

131-1216

LOCK NUT,3/8"-16, GC

2шт.
