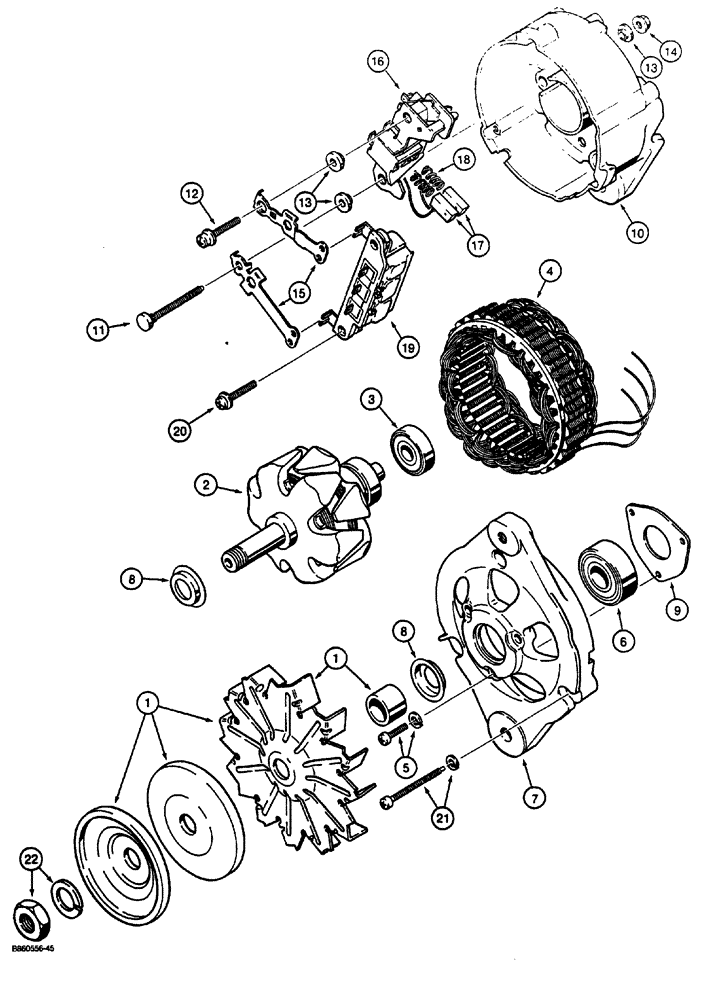

Запчасти Case CASE (4-06) - ALTERNATOR (04) - ELECTRICAL SYSTEMS

N9799

ALTERNATOR

ASSEMBLY engine, Mitsubishi No. 34468-18100, Includes: Ref. 1 - 22

1шт.

1

N13885

PULLEY

SPARE PART ASSEMBLY alternator

1шт.

N8030

ROTOR ASSY.

alternator, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

ROTOR alternator

1шт.

3

N8033

BEARING

rotor

1шт.

4

N8031

STATOR

alternator

1шт.

N13886

HOUSING ASSY.

alternator, front, Includes: Ref. 5 - 9

1шт.

5

N8042

SET SCREW

WASHER short, special, front alternator housing

1шт.

6

N13887

BALL BEARING

bracket

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING alternator, front

1шт.

8

NSS

NOT SOLD SEPARAT

CUP bearing

2шт.

9

NSS

NOT SOLD SEPARAT

PLATE bearing retaining

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING alternator, rear

1шт.

N8035

CONNECTION,ELECTRIC

KIT terminal, alternator, Includes: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

STUD long, regulator mounting

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW short, special, regulator mounting

1шт.

13

NSS

NOT SOLD SEPARAT

INSULATOR terminal

3шт.

14

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY terminal

1шт.

15

NSS

NOT SOLD SEPARAT

CLIP connector

2шт.

N8036

REGULATOR

ASSEMBLY voltage, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

REGULATOR voltage

1шт.

17

N8038

BRUSH, COMMUTATOR

BRUSH regulator

2шт.

18

N8039

SPRING

brush

2шт.

N8037

RECTIFIER

ASSEMBLY alternator, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

RECTIFIER alternator

1шт.

20

NSS

NOT SOLD SEPARAT

SCREW special, rectifier mounting

2шт.

21

N8041

SET SCREW

WASHER long, special, front alternator housing bracket

1шт.

22

N8040

NUT

SET washer, special, alternator

1шт.
