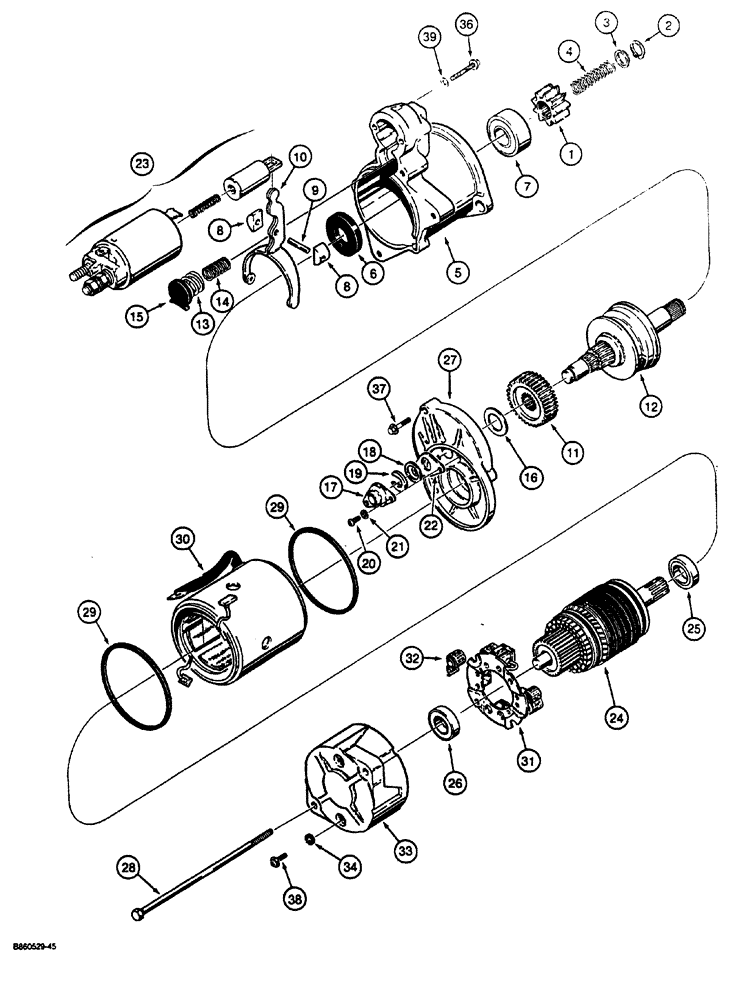

Запчасти Case CASE (4-04) - STARTER (04) - ELECTRICAL SYSTEMS

N8367

STARTING MOTOR

ASSEMBLY engine, Mitsubishi No. 34466-20201, Includes: Ref. 1 - 39

1шт.

N8378

PINION

GEAR ASSEMBLY starter, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR pinion, starter

1шт.

N8383

KIT

stop, pinion gear, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RING snap, pinion gear

1шт.

3

NSS

NOT SOLD SEPARAT

RING retaining, pinion gear

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING pinion

1шт.

N8368

BRACKET

HOUSING ASSEMBLY starter, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING starter

1шт.

6

N8061

OIL SEAL

1шт.

7

NSS

NOT SOLD SEPARAT

BEARING housing

1шт.

N8045

LEVER ASSY.

starter, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

STOP spring

2шт.

9

NSS

NOT SOLD SEPARAT

PIN lever

1шт.

10

NSS

NOT SOLD SEPARAT

LEVER solenoid

1шт.

11

N8379

GEAR

reduction

1шт.

12

N8377

SHAFT

pinion, starter

1шт.

N8046

SPRING KIT

Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING lever, outer

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING lever, inner

1шт.

15

NSS

NOT SOLD SEPARAT

STOP spring

1шт.

N8380

KIT

cover, shaft, Includes: Ref. 16 - 22

1шт.

16

NSS

NOT SOLD SEPARAT

SHIM gear adjustment

1шт.

17

NSS

NOT SOLD SEPARAT

COVER pinion shaft

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER thrust, cover

1шт.

19

NSS

NOT SOLD SEPARAT

RING retaining, cover

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT special, cover

2шт.

21

NSS

NOT SOLD SEPARAT

WASHER lock

2шт.

22

NSS

NOT SOLD SEPARAT

GASKET cover

1шт.

23

N8048

SWITCH

solenoid

1шт.

N8370

ARMATURE

SPARE PART ASSEMBLY starter, Includes: Ref. 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

ARMATURE starter

1шт.

25

N8381

BEARING

SPARE PART splined end

1шт.

26

N8382

BEARING

SPARE PART closed end

1шт.

27

N8369

BRACKET

center

1шт.

28

N8050

BOLT

special, set of two, rear cover

1шт.

29

N8371

GASKET

housing

2шт.

30

N8372

HOUSING

SPARE PART coil

1шт.

N8373

PLATE ASSY.

SPARE PART brush, Includes: Ref. 31 and 32

1шт.

31

NSS

NOT SOLD SEPARAT

PLATE brush

1шт.

32

N8384

SPRING

brush

4шт.

33

N8374

BRACKET

COVER rear

1шт.

34

N8060

SEALING RING

rubber

2шт.

35

N8375

SET SCREW

KIT bolt, starter, Includes: Ref. 36 - 38

1шт.

36

NSS

NOT SOLD SEPARAT

SCREW special, starter housing

2шт.

37

NSS

NOT SOLD SEPARAT

BOLT special, center bracket

1шт.

38

NSS

NOT SOLD SEPARAT

SCREW special, rear cover

2шт.

39

N8376

SET OF WASHERS

special, front housing

1шт.
