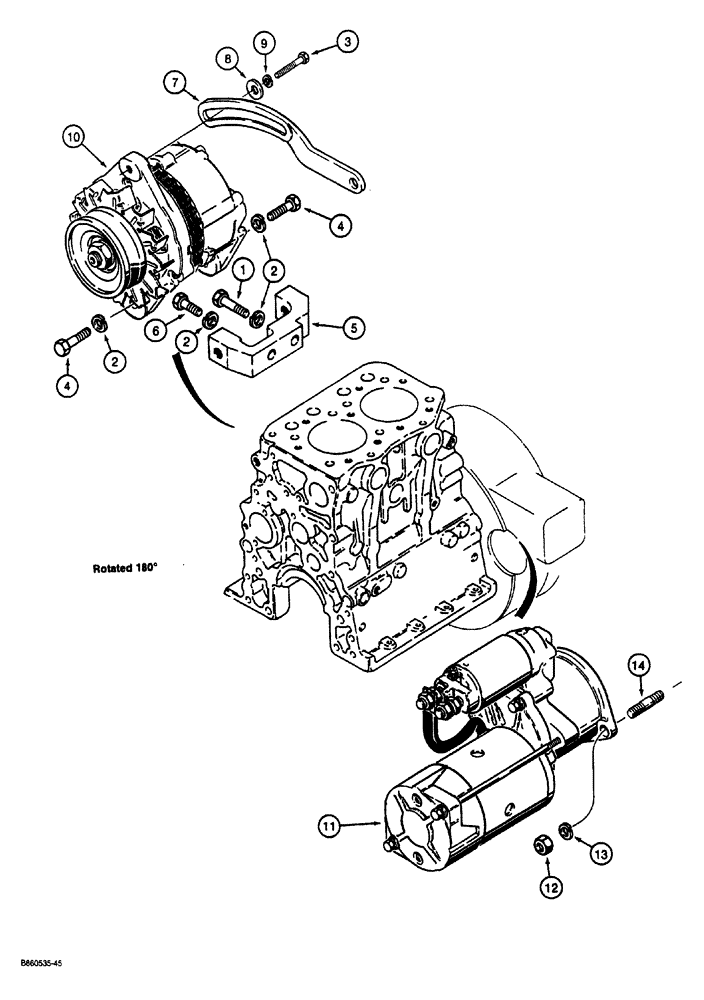

Запчасти Case CASE (4-02) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

827-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9

hex head, plated, 10 mm-1.5 x 35 mm, 10.9

1шт.

2

892-1110

LOCK WASHER,M10

4шт.

3

827-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

hex head, plated, 8 mm-1.25 x 25 mm, 10.9

1шт.

4

514-702

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

hex head, 10 mm-1.25 x 35 mm, 8.8

2шт.

5

N13883

BRACKET

alternator mounting

1шт.

6

827-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

hex head, plated, 10 mm-1.5 x 25 mm, 10.9

1шт.

7

N13882

PLATE

BRACKET alternator adjusting

1шт.

8

195-2019

WASHER

flat, special, 5/16"

1шт.

9

892-1108

LOCK WASHER,M8

1шт.

10

N9799

ALTERNATOR

ASSEMBLY engine, parts list Figure 4-06

1шт.

11

N8367

STARTING MOTOR

engine, parts list Figure 4-04

1шт.

12

525-5100

NUT,M10 x 1.25, Cl 8

hex, plated, 10 mm-1.25, 8

2шт.

13

892-1110

LOCK WASHER,M10

2шт.

14

N13806

STUD

starter mounting

2шт.
