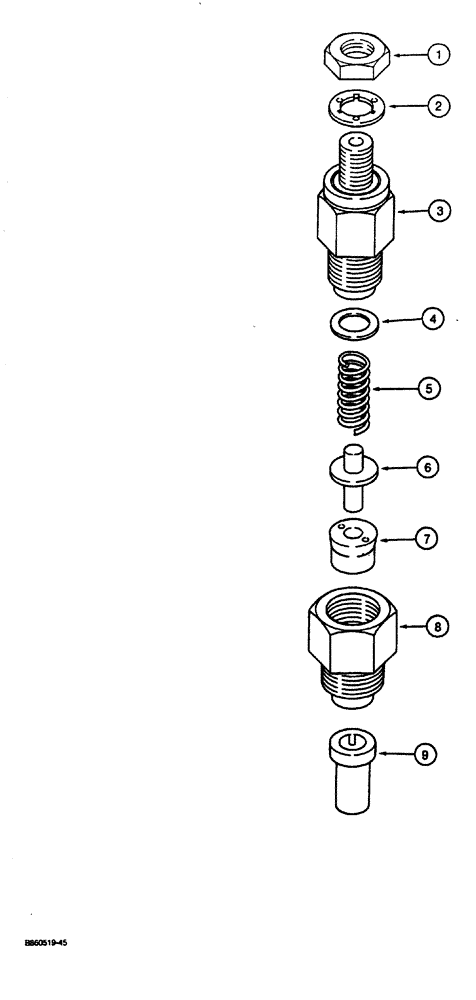

Запчасти Case CASE (3-12) - INJECTION NOZZLE (03) - FUEL SYSTEM

N14200

NOZZLE INJECTION

ASSEMBLY fuel, complete nozzle assembly not available, order individual components for service, Includes: Ref. 1 - 9

2шт.

N14238

BRUSH, COMMUTATOR

BRUSH BODY ASSEMBLY fuel injection nozzle, Includes: Ref. 1 - 8

1шт.

1

H14240

NUT special, retaining

1шт.

2

H14241

PACKING body assembly

1шт.

3

NSS

NOT SOLD SEPARAT

BODY fuel injection nozzle

1шт.

4

H14457

SHIM nozzle, 0.9 mm thick

1шт.

4

H14458

SHIM nozzle, 1.05 mm thick

1шт.

4

H14459

SHIM nozzle, 1.20 mm thick

1шт.

4

N14242

WASHER

SHIM nozzle, 1.625 mm thick

1шт.

4

H14460

SHIM nozzle, 1.95 mm thick

1шт.

5

H14243

SPRING nozzle pressure

1шт.

6

H14244

SEAT nozzle pressure spring

1шт.

7

H14245

SPACER nozzle

1шт.

8

H14246

NUT nozzle retaining

1шт.

9

H14239

TIP ASSEMBLY nozzle

1шт.
