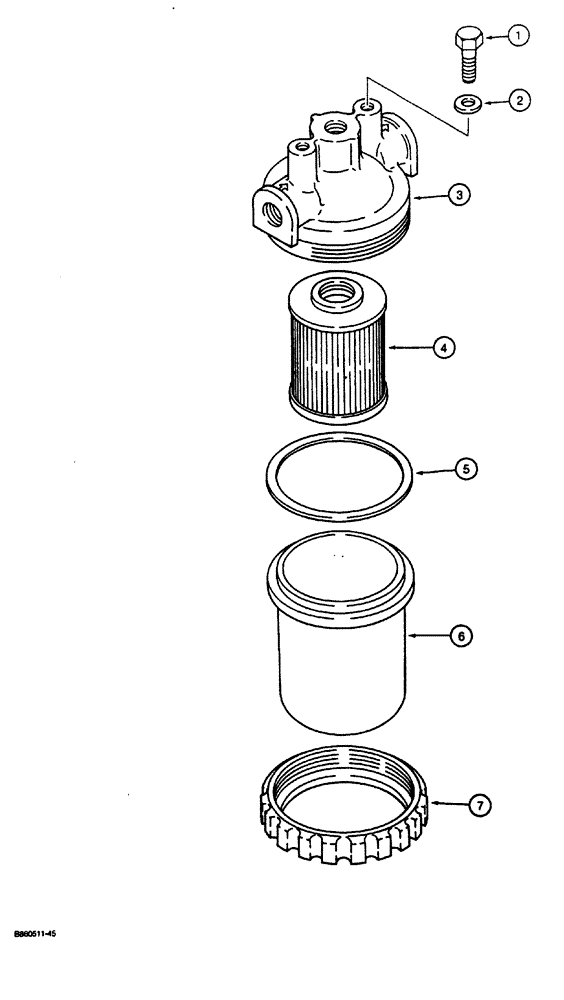

Запчасти Case CASE (3-10) - FUEL FILTER (03) - FUEL SYSTEM

N13874

FILTER

ASSEMBLY fuel, Includes: Ref. 1 - 7

1шт.

1

814-6010

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

hex head, plated, 6 mm-1 x 10 mm, 8.8

1шт.

2

N13878

GASKET

WASHER flat, special

1шт.

3

NSS

NOT SOLD SEPARAT

HEAD filter

1шт.

N13879

KIT

element, fuel filter, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

ELEMENT filter

1шт.

5

A17528

O-RING,1.737" ID x 1.943" OD x 0.103"

GASKET filter element housing

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING filter element

1шт.

7

N13880

RING

retaining, filter element housing

1шт.
