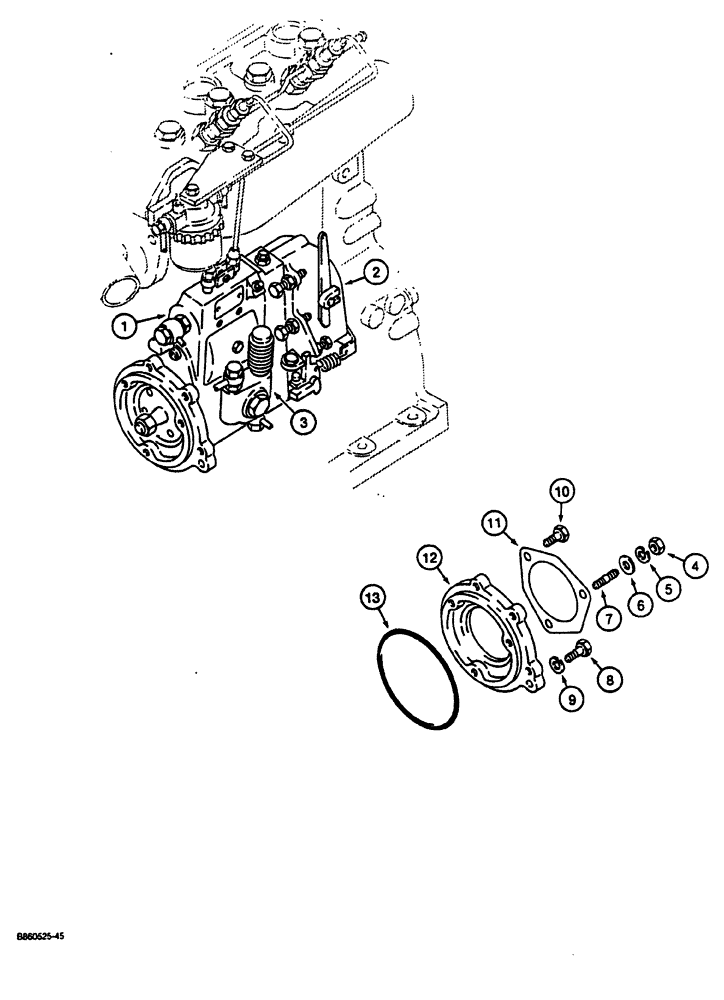

Запчасти Case CASE (3-08) - FUEL INJECTION PUMP (03) - FUEL SYSTEM

N14205

PUMP

ASSEMBLY fuel injection, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP fuel injection

1шт.

2

NSS

NOT SOLD SEPARAT

GOVERNOR ASSEMBLY fuel injection pump

1шт.

3

N13866

PUMP

lift, fuel

1шт.

4

525-5100

NUT,M10 x 1.25, Cl 8

hex, plated, 10 mm-1.25, 8

3шт.

5

892-1110

LOCK WASHER,M10

3шт.

6

A57470

WASHER

flat, 3/8" x 11/16" x 16 gauge (10 mm x 17 mm x 2 mm)

3шт.

7

N13867

STUD

SPARE PART flange to injection pump

3шт.

8

827-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

hex head, plated, 8 mm-1.25 x 20 mm, 10.9

1шт.

9

892-1108

LOCK WASHER,M8

1шт.

10

H411942

BOLT

special

1шт.

11

N13870

GASKET

fange

1шт.

12

N13868

PLATE

SPARE PART flange

1шт.

13

N13869

O-RING,414.5MM ID x 2MM Width

flange

1шт.
