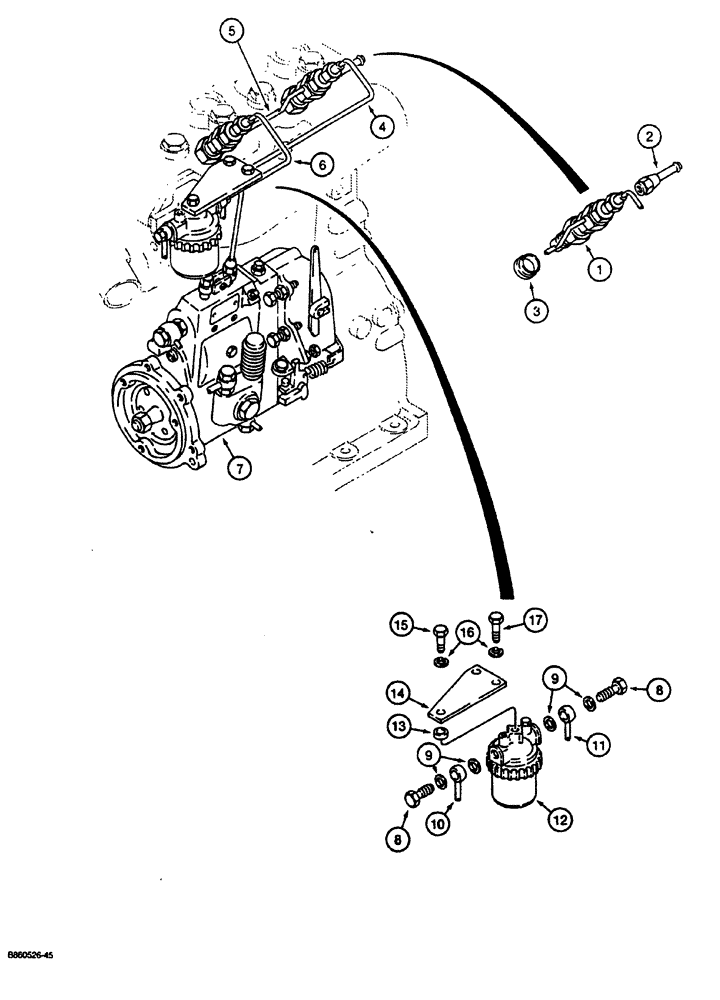

Запчасти Case CASE (3-06) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

1

N14200

NOZZLE INJECTION

ASSEMBLY fuel, parts list Figure 3-12

2шт.

2

N13861

CONNECTOR, ELEC

SPARE PART fuel return line

1шт.

3

N14201

GASKET

nozzle

2шт.

4

N14203

INJECTION PIPE

No. 2

1шт.

5

N14204

PIPE

fuel drain

1шт.

6

N14202

INJECTION PIPE

No. 1

1шт.

7

N14205

PUMP

fuel injection, parts list Figure 3-08

1шт.

8

N13871

BOLT

eye, fuel filter

2шт.

9

N13811

GASKET

WASHER special, sealing

4шт.

10

N13873

HOSE,9.50 mm ID x 350.00 mm

Fuel, to filter

1шт.

11

N13875

HOSE,245.00 mm

Fuel, to injection pump

1шт.

12

N13874

FILTER

ASSEMBLY fuel, parts list Figure 3-10

1шт.

13

N13877

SPACER

filter mounting

1шт.

14

N13876

BRACKET

filter mounting

1шт.

15

514-702

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

hex head, 10 mm-1.25 x 35 mm, 8.8

1шт.

16

892-1110

LOCK WASHER,M10

3шт.

17

827-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

hex head, plated, 10 mm-1.5 x 20 mm, 10.9

2шт.
