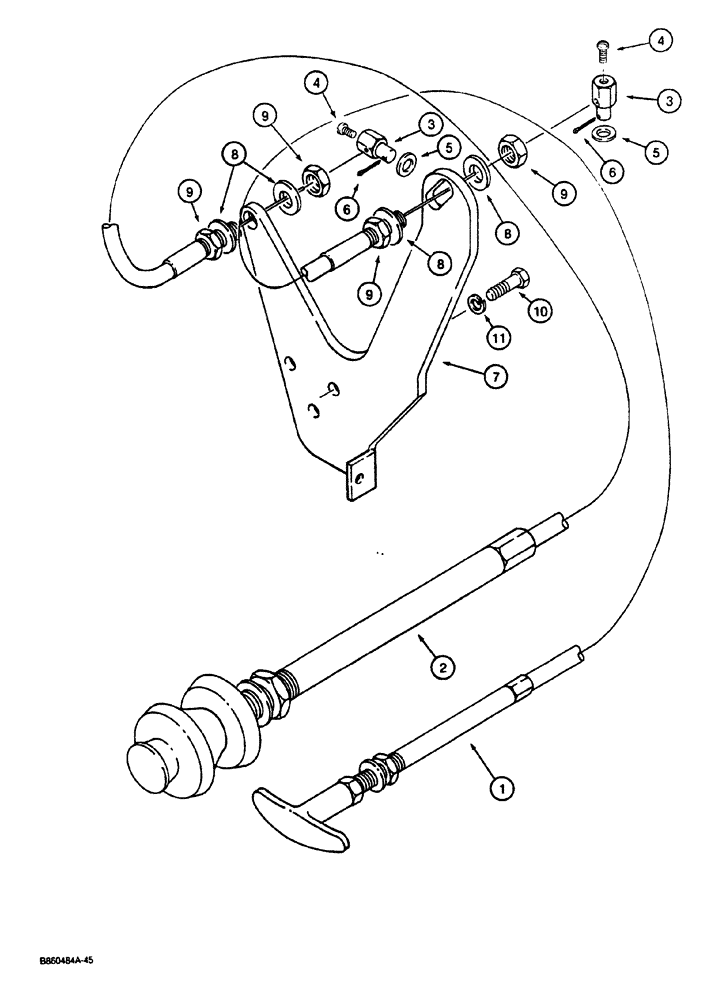

Запчасти Case CASE (3-04) - THROTTLE AND ENGINE CONTROLS (03) - FUEL SYSTEM

1

H671123

CABLE

fuel shut off

1шт.

2

H431817

CABLE PULLING GRIP

throttle

1шт.

3

H327494

JOINT TURNING

STOP wire

2шт.

4

182-147

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

pan head, No. 10-32 NF x 3/4", used in stop

2шт.

5

195-518

WASHER,1/4", SAE

2шт.

6

132-328

COTTER PIN,1/16" x 1/2"

2шт.

7

H673429

BRACKET

SPARE PART cable, Replaces: H434277

1шт.

8

195-525

WASHER,3/8", SAE

4шт.

9

86585245

SPECIAL NUT,JAM, 5/8" - 18

4шт.

10

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

3шт.

11

892-1106

LOCK WASHER,M6

3шт.
