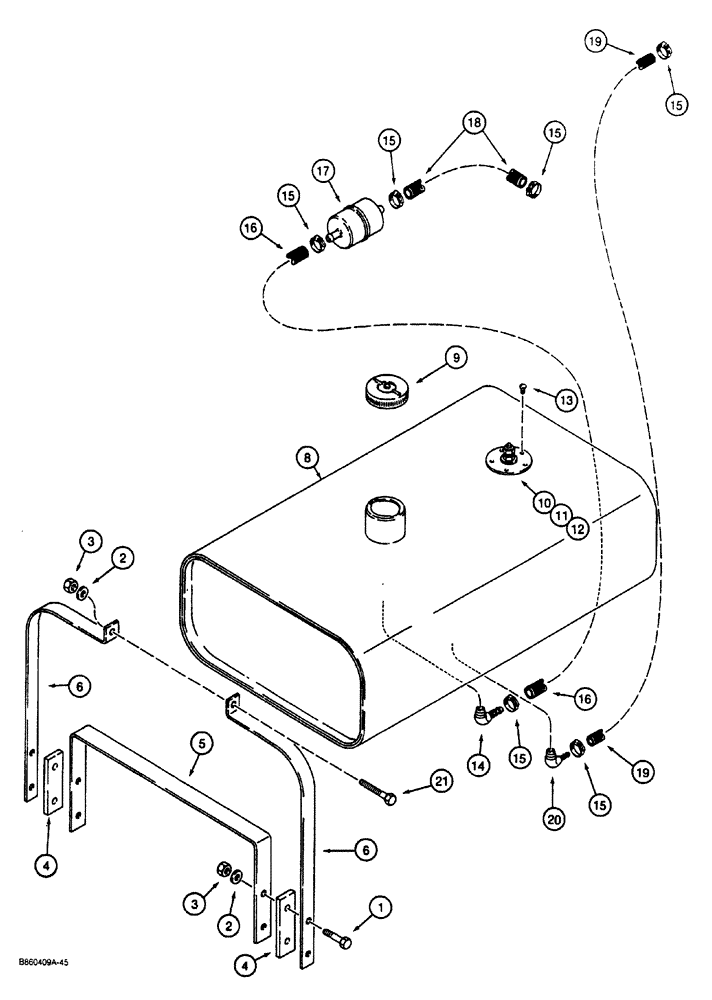

Запчасти Case CASE (3-02) - FUEL TANK AND LINES (03) - FUEL SYSTEM

1

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

8шт.

2

195-521

WASHER,5/16", SAE

10шт.

3

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Hex

10шт.

4

H343830

SPACER

SPARE PART fuel tank mounting

4шт.

5

H343855

SUPPORT

fuel tank

2шт.

6

H343848

STRAP

fuel tank

4шт.

7

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

H673305

FUEL TANK

ASSEMBLY, Replaces: H669531 and H672909, Includes: Ref. 8 - 13

1шт.

8

NSS

NOT SOLD SEPARAT

TANK fuel

1шт.

9

H151274

CYLINDER END CAP

fuel tank

1шт.

N13697

SENDER UNIT

SENDER ASSEMBLY fuel tank, Includes: Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

SENDER fuel tank

1шт.

11

NSS

NOT SOLD SEPARAT

FLOAT sender

1шт.

12

NSS

NOT SOLD SEPARAT

GASKET sender

1шт.

13

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

Machine

5шт.

14

217-295

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/4" Male NPTF

stem, 90 degree

1шт.

15

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

hose

6шт.

16

REF

INSTRUCTION

HOSE suction, 5/16" (8 mm) ID x 51-1/4" (1300 mm) long, cut from S120317 bulk hose, see below

1шт.

17

H413666

FILTER CARTRIDGE

fuel

1шт.

18

REF

INSTRUCTION

HOSE suction, 5/16" (8 mm) ID x 5-7/8" (150 mm) long, cut from H424101 bulk hose, see below

1шт.

19

REF

INSTRUCTION

HOSE return, 1/4" (6 mm) ID x 54" (1372 mm) long, cut from H400184 bulk hose, see below

1шт.

20

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

1шт.

21

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

S120317

HOSE,0.31" ID x 300.00", SAE 30R2 Type 1

Bulk, Use to make Ref. 16

1шт.

H424101

HOSE,7.90 mm ID x 2300.00 mm, SAE 30R2 Type 1

Bulk, Use to make Ref. 18

1шт.

H400184

FUEL HOSE,6.35 mm ID x 1905.00 mm, SAE 30R1, SAE 30R3

Cut from Bulk Hose, Use to Make Ref. 19

1шт.
