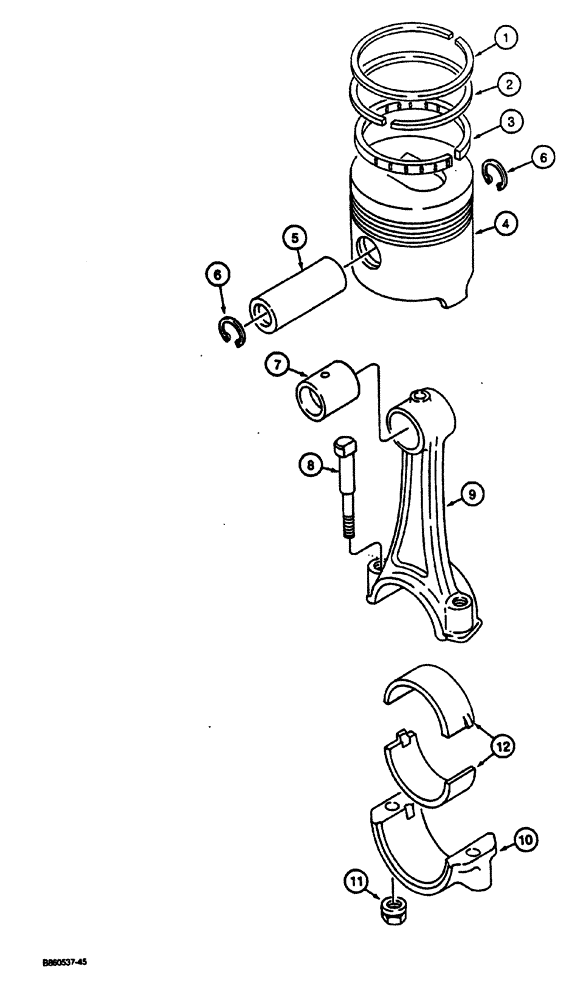

Запчасти Case CASE (2-34) - PISTONS AND CONNECTING RODS (02) - ENGINE

N13813

RING

KIT piston, standard, Includes: Ref. 1-3

2шт.

N13897

SET

KIT ring, piston, oversize, 0.010" (0.25 mm), Includes: Ref. 1 - 3

2шт.

N13898

SET

KIT ring, piston, oversize, 0.020" (0.50 mm), Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

N13814

PISTON

cylinder, standard

2шт.

4

N13899

PISTON

cylinder, oversize, 0.010" (0.25 mm)

2шт.

4

N13900

PISTON

cylinder, oversize, 0.020" (0.50 mm)

2шт.

5

N13815

PIN

piston

2шт.

6

N13816

RING

snap, pin

4шт.

N13817

ROD ASSY.

connecting, Includes: Ref. 7 - 12

2шт.

7

N13818

BUSHING

rod to piston pin

1шт.

8

N13819

BOLT

special

2шт.

9

NSS

NOT SOLD SEPARAT

ROD connecting

1шт.

10

NSS

NOT SOLD SEPARAT

CAP connecting rod

1шт.

11

N13820

NUT

special

2шт.

12

N13821

BEARING LINER

connecting rod, standard

2шт.

12

N13901

BEARING LINER

connecting rod, oversize, 0.010" (0.25 mm)

2шт.

12

N13902

BEARING LINER

connecting rod, oversize, 0.020" (0.50 mm)

2шт.

12

N13903

BEARING LINER

connecting rod, oversize, 0.030" (0.75 mm)

2шт.
