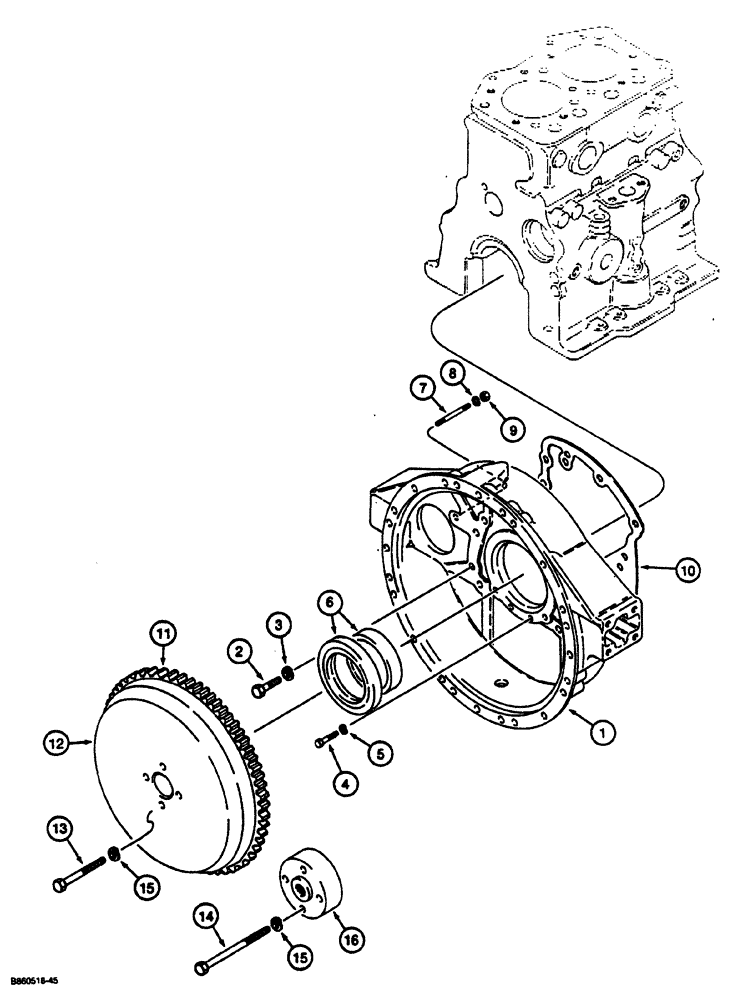

Запчасти Case CASE (2-32) - FLYWHEEL AND HOUSING (02) - ENGINE

1

N13805

HOUSING

SPARE PART flywheel

1шт.

2

827-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

hex head, plated, 10 mm-1.5 x 25 mm, 10.9

11шт.

3

892-1110

LOCK WASHER,M10

11шт.

4

827-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

hex head, plated, 8 mm-1.25 x 25 mm, 10.9

4шт.

5

892-1108

LOCK WASHER,M8

4шт.

6

N13804

OIL SEAL

oil, flywheel housing

1шт.

7

N13806

STUD

starter mount

2шт.

8

892-1110

LOCK WASHER,M10

2шт.

9

525-5100

NUT,M10 x 1.25, Cl 8

hex, plated, 10 mm-1.25, 8

2шт.

10

N13807

GASKET

rear

1шт.

N13825

FLYWHEEL WITH GEAR

ASSEMBLY engine, Includes: Ref. 11 and 12

1шт.

11

N13826

GEAR

SPARE PART ring

1шт.

12

NSS

NOT SOLD SEPARAT

FLYWHEEL engine

1шт.

13

514-821

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

hex head, 12 mm-1.25 x 40 mm, 8.8, included with engine assembly, discard and use H423459 bolts, Ref. 14

4шт.

14

H423459

BOLT

hex head, plated, special, 12 mm-1.25 x 65 mm, 10.9

4шт.

15

892-1112

LOCK WASHER,M12

4шт.

16

H423061

HUB ASSY.

ADAPTER ground drive pump, see Figure 6-02 for ground drive pump mounting and hydraulic circuit

1шт.
