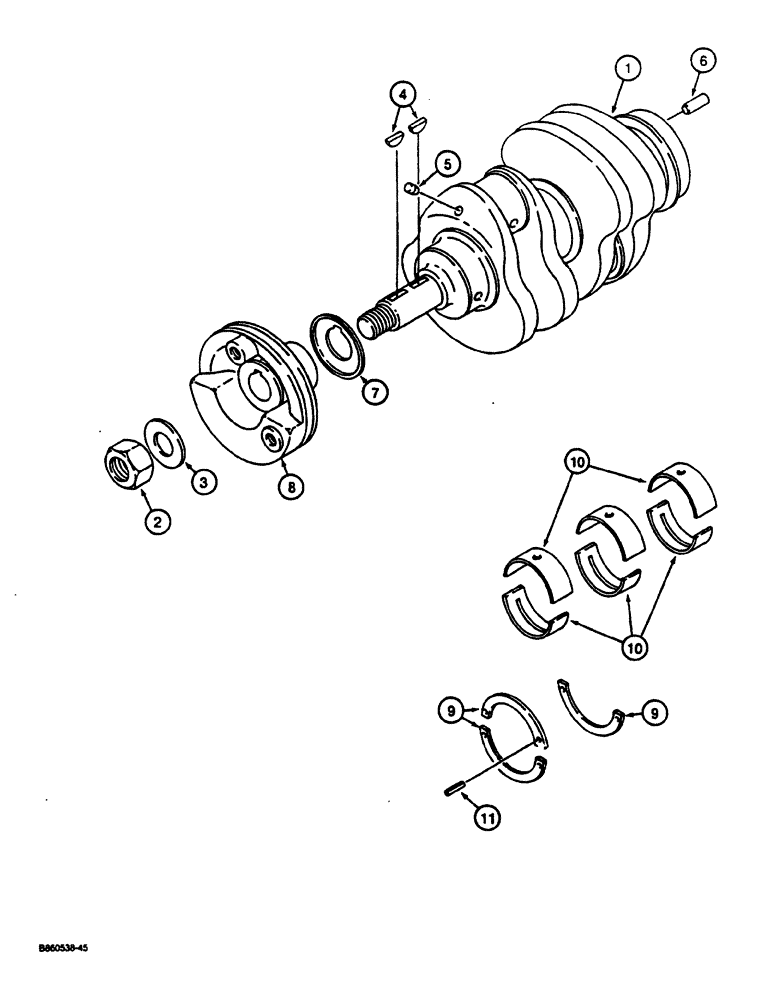

Запчасти Case CASE (2-30) - CRANKSHAFT (02) - ENGINE

N13822

SHAFT ASSY.

crank, engine, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

CRANKSHAFT engine

1шт.

2

H759035

JAM NUT

crankshaft

1шт.

3

H410696

WASHER

special, crankshaft

1шт.

4

H758748

KEY

woodruff, crankshaft

2шт.

5

NSS

NOT SOLD SEPARAT

PLUG crankshaft

1шт.

6

H758714

DOWEL

PIN crankshaft

2шт.

7

N13823

PLATE

baffle

1шт.

8

N13824

PULLEY

crankshaft

1шт.

9

N13798

PLATE

thrust, standard

3шт.

9

N13891

PLATE

thrust, oversize, 0.006" (0.15 mm)

3шт.

9

N13892

PLATE

SPARE PART thrust, oversize, 0.012" (0.30 mm)

3шт.

9

N13893

PLATE

thrust, oversize, 0.018" (0.45 mm)

3шт.

10

N13799

BEARING LINER

KIT main, standard

6шт.

10

N13894

BEARING LINER

KIT main, oversize, 0.010" (0.25 mm)

6шт.

10

N13895

BEARING LINER

KIT main, oversize, 0.020" (0.50 mm)

6шт.

10

N13896

BEARING

SPARE PART KIT main, oversize, 0.030" (0.75 mm)

6шт.

11

H758722

PIN

thrust plate

6шт.
