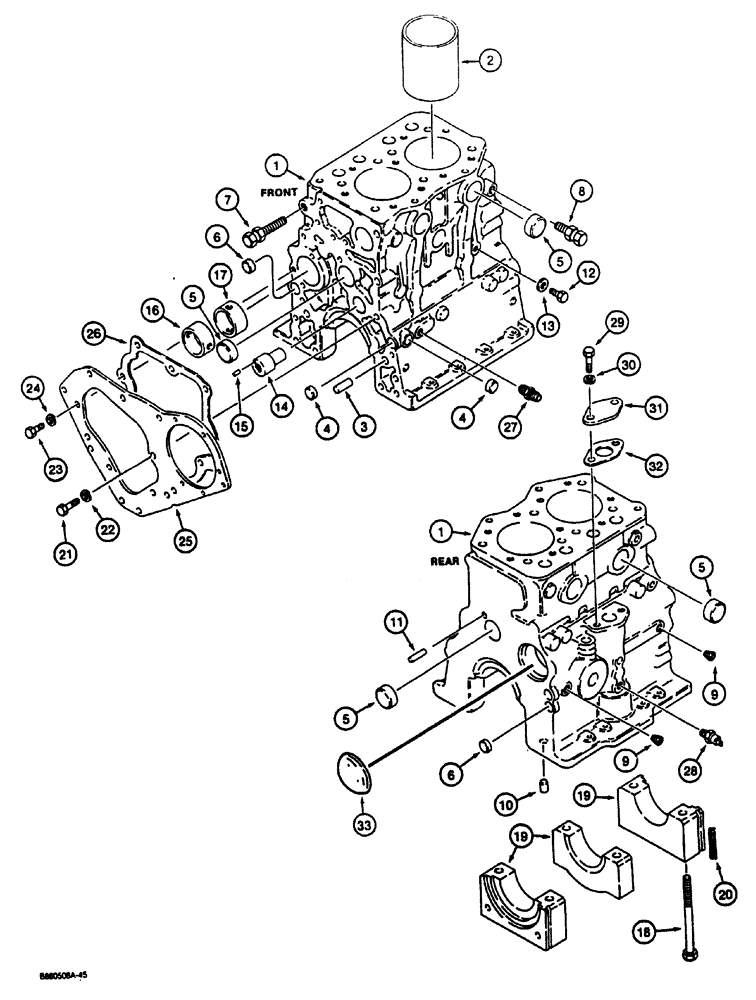

Запчасти Case CASE (2-28) - CYLINDER BLOCK (02) - ENGINE

N13785

CRANKCASE

BLOCK ASSEMBLY engine, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK ASSEMBLY with cylinder sleeves, Includes: Ref. 2

1шт.

2

N13790

SLEEVE

cylinder

2шт.

3

N13786

PIN

SPARE PART dowel, timing gear case

2шт.

4

N13787

CAP

sealing

4шт.

5

H411835

CAP

sealing

7шт.

6

N13788

CAP

sealing

3шт.

7

N13789

BOLT

SPARE PART special, engine lift, front

1шт.

8

H411819

BOLT AND NUT

BOLT special, engine lift, rear

1шт.

9

221-1849

PLUG

hex socket head, 1/8" NPT

4шт.

10

NSS

NOT SOLD SEPARAT

PLUG block

1шт.

11

N13793

PIN

SPARE PART dowel, flywheel housing

2шт.

12

814-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

hex head, plated, 10 mm-1.5 x 16 mm, 8.8

1шт.

13

N13794

WASHER

special, sealing

1шт.

N13795

SHAFT ASSY.

SPARE PART idler, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

SHAFT idler

1шт.

15

H758722

PIN

shaft

1шт.

16

H410365

BUSHING

camshaft

1шт.

17

H410381

BUSHING

camshaft

1шт.

18

827-14100

BOLT,Hex, M14 x 2 x 100mm, Cl 10.9

Hex, M14 x 100, 10.9

6шт.

19

N13792

BEARING CAP

CAP bearing, three

1шт.

20

N13791

SEAL

side

4шт.

21

827-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

hex head, plated, 10 mm-1.5 x 20 mm, 10.9

1шт.

22

892-1110

LOCK WASHER,M10

1шт.

23

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex head, plated, 8 mm-1.25 x 16 mm, 8.8

1шт.

24

892-1108

LOCK WASHER,M8

1шт.

25

N13796

PLATE

SPARE PART front

1шт.

26

N13797

GASKET

front plate

1шт.

27

H412973

CONNECTOR, ELEC

CONNECTOR oil tube

1шт.

28

H411892

SWITCH

SENDER oil pressure

1шт.

29

827-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

hex head, plated, 8 mm-1.25 x 20 mm, 10.9

2шт.

30

892-1108

LOCK WASHER,M8

2шт.

31

N13800

COVER

tach. drive

1шт.

32

H410811

GASKET

cover

1шт.

33

541-65

PLUG

expansion, cylinder block

1шт.
