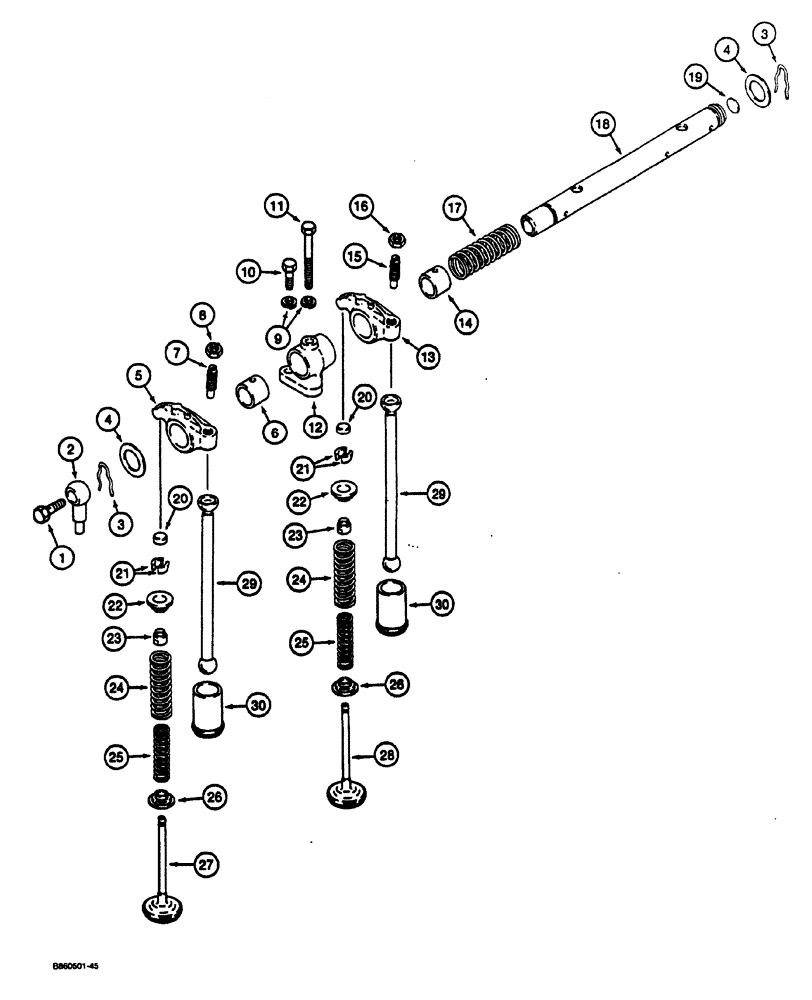

Запчасти Case CASE (2-24) - VALVE MECHANISM (02) - ENGINE

1

N13767

BOLT

eye, special

1шт.

2

N13768

PIPE

oil

1шт.

3

H410175

RING, SNAP

RING SNAP rocker assembly

2шт.

4

N13769

WASHER

SPARE PART special

2шт.

N13770

LEVER ASSY.

SPARE PART ROCKER intake, Includes: Ref. 5 - 8

2шт.

5

NSS

NOT SOLD SEPARAT

ARM rocker, intake

1шт.

6

N13771

BUSHING

rocker arm

1шт.

7

H410126

ADJUSTMENT SCREW,M8 x 1.25 x 32mm

adjusting

1шт.

8

825-1008

NUT,M8, Cl 8

hex, 8 mm-1.25

1шт.

9

892-1108

LOCK WASHER,M8

4шт.

10

827-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

hex head, plated, 8 mm-1.25 x 20 mm, 10.9

2шт.

11

827-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

2шт.

12

N13772

BRACKET

SPARE PART rocker shaft

2шт.

N13773

LEVER

ROCKER ASSEMBLY exhaust, Includes: Ref. 13 - 16

2шт.

13

NSS

NOT SOLD SEPARAT

ARM rocker, exhaust

1шт.

14

N13771

BUSHING

rocker arm

1шт.

15

H410126

ADJUSTMENT SCREW,M8 x 1.25 x 32mm

adjusting

1шт.

16

825-1108

NUT,Hex, M8, Cl 8

plated

1шт.

17

N13774

SPRING

rocker shaft

1шт.

N13775

SHAFT ASSY.

SPARE PART rocker arm, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

SHAFT rocker

1шт.

19

541-12

PLUG

SPARE PART expansion, 12 mm

1шт.

20

H410191

CAP

retainer

4шт.

21

N13776

LOCKING DEVICE

KEEPER valve

8шт.

22

N13777

RETAINER

SPARE PART upper

4шт.

23

H410225

SEAL

valve stem

4шт.

24

H410233

SPRING

valve, outer

4шт.

25

H410266

SPRING

valve, inner

4шт.

26

H410274

RETAINER

spring

4шт.

27

N13778

VALVE

inlet

2шт.

28

N13779

VALVE

exhaust

2шт.

29

N13782

ROD

push, valve

4шт.

30

H410332

TAPPET

SPARE PART valve

4шт.
