(2-20) - OIL PAN AND DIPSTICK

Запчасти Case CASE (2-20) - OIL PAN AND DIPSTICK (02) - ENGINE

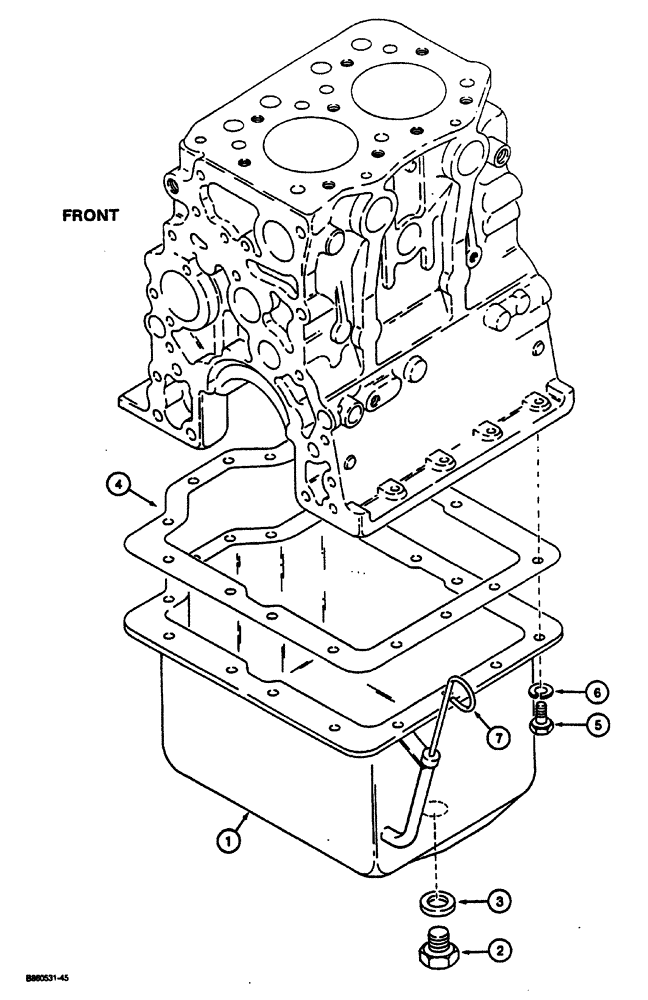

Схема запчастей Case CASE - (2-20) - OIL PAN AND DIPSTICK (02) - ENGINE
3
1
2
6
4
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

N13810

PAN ASSY.

engine oil, Includes: Ref. 2 and 3

1шт.

2

N13812

PLUG

drain, engine oil

1шт.

3

N13811

GASKET

WASHER special, sealing, drain plug

1шт.

4

N13808

OIL PAN GASKET SET

oil pan

1шт.

5

827-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

hex head, plated, 8 mm-1.25 x 25 mm, 10.9

16шт.

6

892-1108

LOCK WASHER,M8

16шт.

7

N13809

GAUGE

DIPSTICK engine oil

1шт.

Выбрано товаров: 0
