(2-18) - OIL FILTER AND PUMP

Запчасти Case CASE (2-18) - OIL FILTER AND PUMP (02) - ENGINE

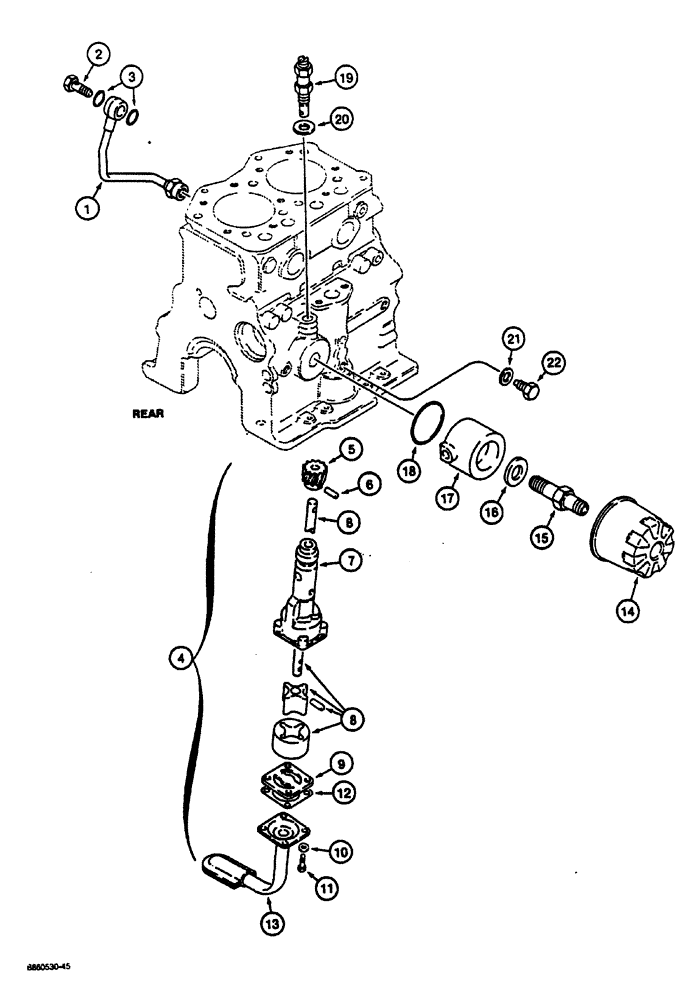

Схема запчастей Case CASE - (2-18) - OIL FILTER AND PUMP (02) - ENGINE
8
20
22
14
17
16
12
10
7
2
15
19
6
4
3
21
9
11
8
5
13
1
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

N13836

TUBE

TUBE ASSEMBLY oil

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE oil

1шт.

2

NSS

NOT SOLD SEPARAT

BOLT special

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL tube

2шт.

4

N13839

PUMP

ASSEMBLY oil, Includes: Ref. 5 - 13

1шт.

5

H420182

GEAR

drive, pump

1шт.

6

H420190

PIN

drive gear

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING pump

1шт.

8

N13840

ROTOR ASSY.

SPARE PART oil pump

1шт.

9

N13841

COVER

SPARE PART oil pump housing

1шт.

10

892-1106

LOCK WASHER,M6

4шт.

11

813-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

hex head, 6 mm-1 x 20 mm, 8.8

4шт.

12

N13842

GASKET

pump

1шт.

13

N13843

STRAINER ASSY.

INTAKE oil

1шт.

14

N13844

FILTER CARTRIDGE

oil

1шт.

15

N13845

CONNECTOR, ELEC

SPARE PART BOLT special, filter

1шт.

16

N13846

GASKET

filter

1шт.

17

N13847

COVER

SPARE PART BASE filter

1шт.

18

N13848

O-RING

base

1шт.

19

H659540

VALVE, PRESSURE RELI

EF ASSEMBLY engine

1шт.

20

N13849

GASKET

relief valve

1шт.

21

N13837

GASKET

bolt

1шт.

22

N13838

BOLT

SPARE PART special

1шт.
