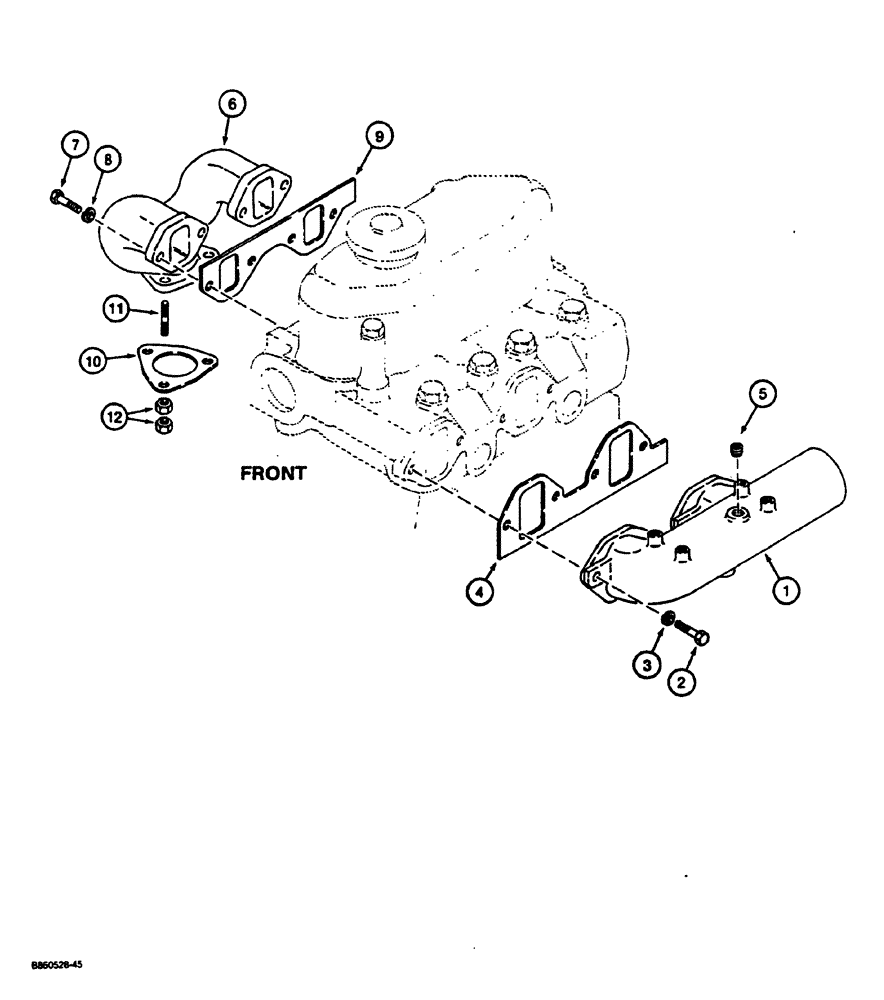

Запчасти Case CASE (2-16) - MANIFOLDS, INTAKE/EXHAUST (02) - ENGINE

1

N13832

MANIFOLD

SPARE PART intake

1шт.

2

827-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

hex head, plated, 8 mm-1.25 x 25 mm, 10.9, intake

4шт.

3

892-1108

LOCK WASHER,M8

Intake

4шт.

4

N13833

GASKET

intake manifold

1шт.

5

221-1849

PLUG

hex socket head, 1/8" NPT, intake

1шт.

6

N13834

MANIFOLD

exhaust

1шт.

7

827-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

hex head, plated, 8 mm-1.25 x 25 mm, 10.9, exhaust

4шт.

8

892-1108

LOCK WASHER,M8

Exhaust

4шт.

9

N13835

GASKET

exhaust manifold

1шт.

10

H410886

GASKET

exhaust pipe

1шт.

11

H758797

STUD

exhaust pipe

3шт.

12

H410894

NUT

special, exhaust

8шт.
