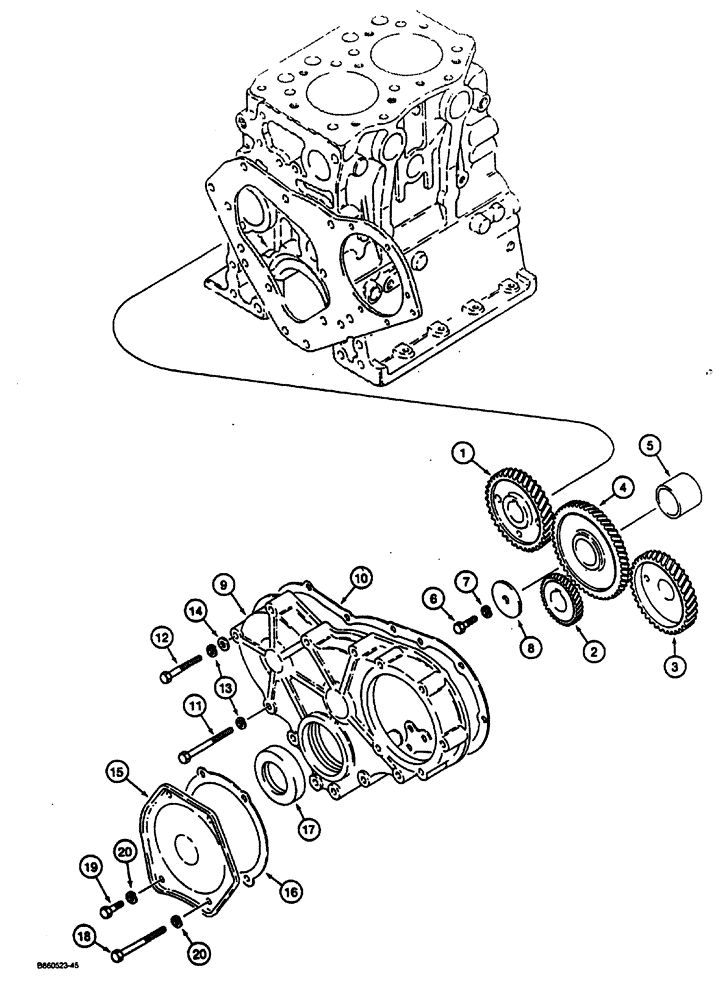

Запчасти Case CASE (2-14) - FRONT COVER AND GEARS (02) - ENGINE

1

N13827

GEAR

camshaft

1шт.

2

N13831

GEAR

crankshaft

1шт.

3

N13830

GEAR

injection pump

1шт.

N13828

FRONT IDLER

SPARE PART GEAR ASSEMBLY engine, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

IDLER GEAR engine

1шт.

5

N13829

BUSHING

idler gear

1шт.

6

827-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

hex head, plated, 10 mm-1.5 x 20 mm, 10.9

1шт.

7

892-1110

LOCK WASHER,M10

1шт.

8

H410761

PLATE, THRUST

WASHER idler gear

1шт.

9

N13801

CASE

COVER timing gears

1шт.

10

N13802

GASKET

timing gears cover

1шт.

11

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

9шт.

13

892-1110

LOCK WASHER,M10

10шт.

14

H758698

WASHER

flat, special, 10 mm

1шт.

15

H410530

COVER

injection pump gear

1шт.

16

H410522

GASKET

gear cover

1шт.

17

N13803

OIL SEAL

oil, crankshaft

1шт.

18

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

4шт.

19

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex head, plated, 8 mm-1.25 x 16 mm, 8.8

1шт.

20

892-1108

LOCK WASHER,M8

5шт.

12

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

1шт.
