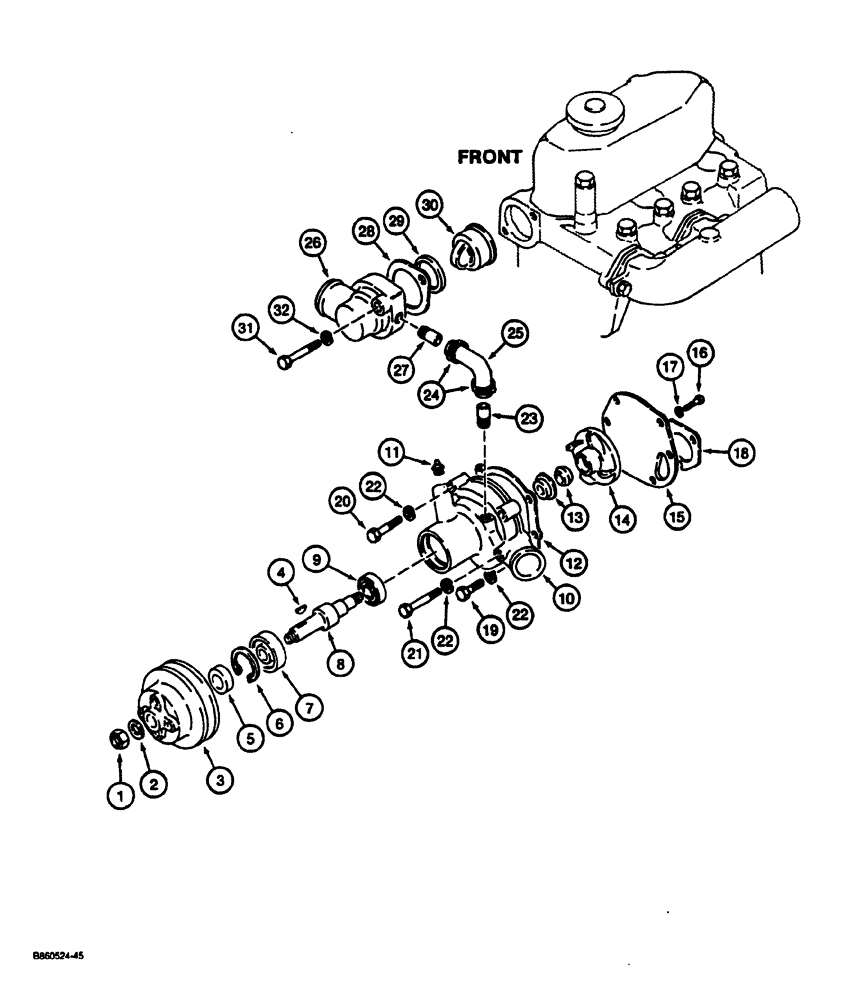

Запчасти Case CASE (2-12) - WATER PUMP (02) - ENGINE

N13856

PUMP, WATER

ASSEMBLY, Includes: Ref. 1 - 23

1шт.

1

525-5105

NUT,M14 x 1.5, Cl 8

hex, plated, 14 mm-1.5, 8

1шт.

2

892-1114

LOCK WASHER,M14

lock, plated, 14 mm

1шт.

3

H411041

PULLEY

water pump

1шт.

4

836-5075

WOODRUFF KEY,5mm x 7.5mm x 18.57mm

WOODRUFF, 5 mm thick x 7.5 mm wide x 18.57 mm long

1шт.

5

N13321

SPACER

water pump

1шт.

6

N9531

KEY

RING snap, bearing

1шт.

7

N13319

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

water pump

1шт.

8

H411074

SHAFT

water pump

1шт.

9

N13318

BALL BEARING,17 mm ID x 12 mm

water pump

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING water pump

1шт.

11

N13320

FITTING

SPARE PART grease, special

1шт.

12

N13853

GASKET

cover

1шт.

13

H411066

SEAL

SPARE PART impeller, Replaces: N13317

1шт.

14

N13854

IMPELLER

water pump

1шт.

15

N13855

COVER

SPARE PART water pump

1шт.

16

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex head, plated, 8 mm-1.25 x 16 mm, 8.8

2шт.

17

892-1108

LOCK WASHER,M8

2шт.

18

N13857

GASKET

water, Serial Range: pump-block

1шт.

19

827-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9

hex head, plated, 10 mm-1.5 x 35 mm, 10.9

2шт.

22

892-1110

LOCK WASHER,M10

2шт.

23

H412148

PIPE

SPARE PART bypass inlet

1шт.

24

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

hose

2шт.

25

N13860

HOSE

Bypass

1шт.

N13858

ELBOW

ASSEMBLY thermostat, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

BODY elbow

1шт.

27

H412189

PIPE

, Serial Range: bypass-pump

1шт.

28

N13859

GASKET

, Serial Range: elbow-block

1шт.

29

H411116

GASKET

thermostat

1шт.

30

H411124

THERMOSTAT

cooling system

1шт.

31

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

32

892-1108

LOCK WASHER,M8

2шт.

21

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

20

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.
