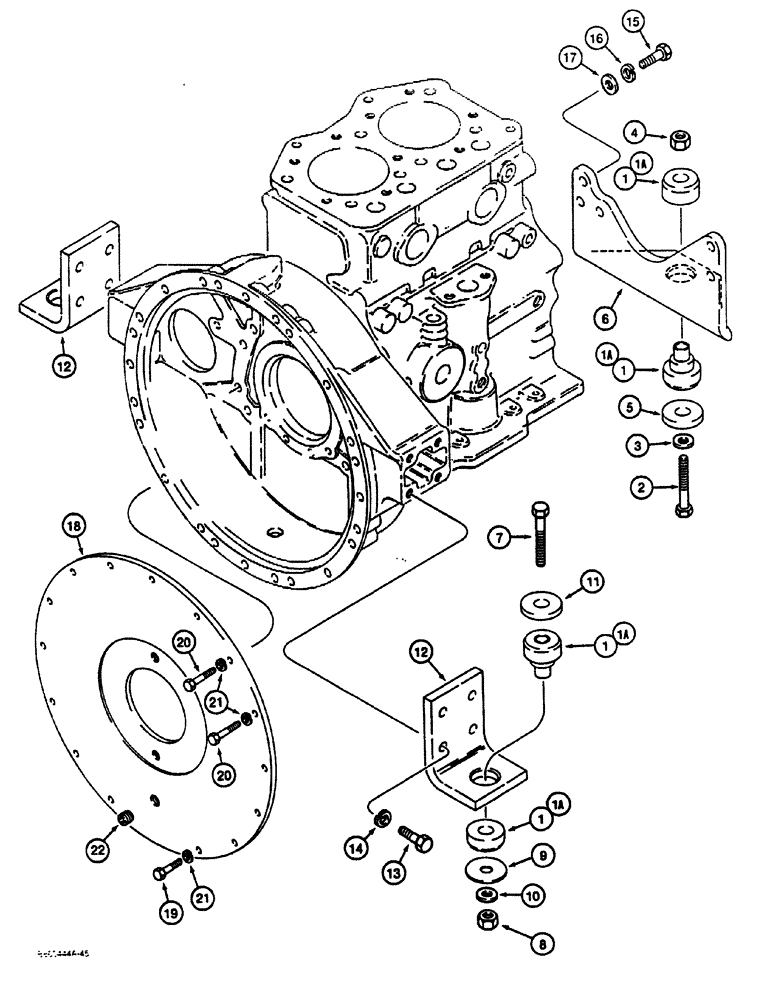

Запчасти Case CASE (2-10) - ENGINE MOUNTING (02) - ENGINE

1

H420752

MOUNTING PARTS

engine, no longer required, order Ref. 1A for service

3шт.

1a

H434679

SHOCK ABSORBER

MOUNT engine

3шт.

2

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

3

H274894

WASHER

flat, special, 1/2"

1шт.

4

131-1182

LOCK NUT,1/2"-13, GA

hex, self-locking, plated, 1/2"-13 NC

4шт.

5

H165720

WASHER

special, shaft retaining

2шт.

6

H427377

ANGLE

SPARE PART MOUNT engine, front

1шт.

7

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

8

131-1182

LOCK NUT,1/2"-13, GA

hex, self-locking, plated, 1/2"-13 NC

2шт.

9

H165720

WASHER

shaft retaining

2шт.

10

195-533

WASHER,1/2", SAE

2шт.

11

B15606

WASHER

flat, special, 1/2"

2шт.

12

H423079

ANGLE

engine mount, rear

2шт.

13

814-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

hex head, plated, 12 mm-1.75 x 30 mm, 8.8

8шт.

14

192-23

LOCK WASHER,1/2"

8шт.

15

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

hex head, plated, 12 mm-1.75 x 35 mm, 8.8

6шт.

16

192-23

LOCK WASHER,1/2"

6шт.

17

895-15012

WASHER,M12 x 28 x 2.5

flat, plated, 12 mm, if used

6шт.

18

H433802

SCRAPER

PLATE adapter, engine to ground drive pump, see Figure 6-02 for ground drive pump mounting

1шт.

19

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

13шт.

20

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

21

892-1110

LOCK WASHER,M10

15шт.

22

221-844

PLUG,Hex Soc, 1/2"-14

1шт.
