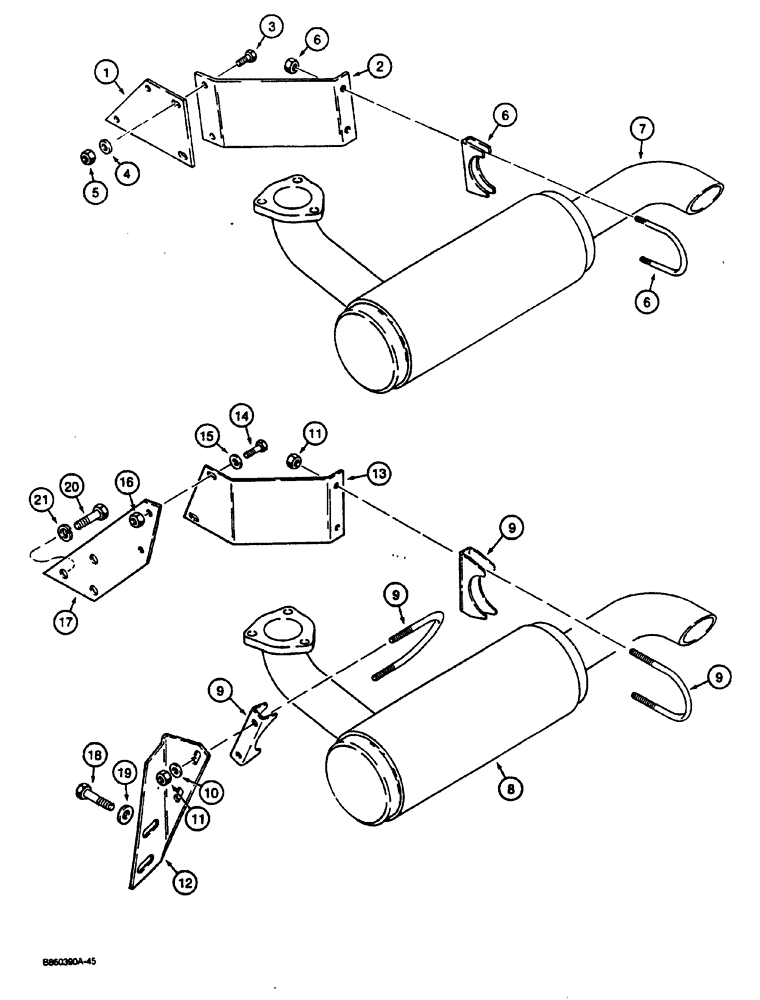

Запчасти Case CASE (2-08) - MUFFLER AND EXHAUST SYSTEM PRIOR TO PIN JAF0003587 (02) - ENGINE

1

H431064

PLATE

SPARE PART muffler mounting, used on models, Serial Range: -JAF0003587

1шт.

2

H423137

BRACKET

SPARE PART muffler support, used on models, Serial Range: -JAF0003587

1шт.

3

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Used on models, Serial Range: -JAF0003587

2шт.

4

H426767

WASHER

flat, hardened, 1/4", used on models, Serial Range: -JAF0003587

2шт.

5

131-1180

LOCK NUT,1/4"-20, GA

Used on models, Serial Range: -JAF0003587

2шт.

6

H262550

CLAMP

muffler, used on models, Serial Range: -JAF0003587

1шт.

7

H428342

MUFFLER

exhaust, used on models, Serial Range: -JAF0003587

1шт.

8

H428342

MUFFLER

exhaust, used on models with, Start Serial: JAF0003587

1шт.

9

H262550

CLAMP

muffler, used on models with, Start Serial: JAF0003587

2шт.

10

H426775

WASHER

flat, hardened, heat treated, 5/16", used on models with, Start Serial: JAF0003587

2шт.

11

131-1215

LOCK NUT,5/16"-18, GC

, Start Serial: JAF0003587

4шт.

12

H436542

BRACKET

muffler mounting, rear, used on models with, Start Serial: JAF0003587

1шт.

13

H435813

SUPPORT

muffler, used on models with, Start Serial: JAF0003587

1шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

, Start Serial: JAF0003587

2шт.

15

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat, 3/8", used on models with, Start Serial: JAF0003587

2шт.

16

131-1216

LOCK NUT,3/8"-16, GC

, Start Serial: JAF0003587

2шт.

17

H435812

LARGE PLATE

PLATE, LARGE muffler mounting, used on models with, Start Serial: JAF0003587

1шт.

18

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

hex, 12 mm-1.75 x 35 mm, used on models with, Start Serial: JAF0003587

2шт.

19

H274894

WASHER

flat, hardened, heat treated, 1/2", used on models with, Start Serial: JAF0003587

2шт.

20

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

hex, 12 mm-1.75 x 35 mm, used on models with, Start Serial: JAF0003587

3шт.

21

192-23

LOCK WASHER,1/2"

Used on models with, Start Serial: JAF0003587

3шт.
